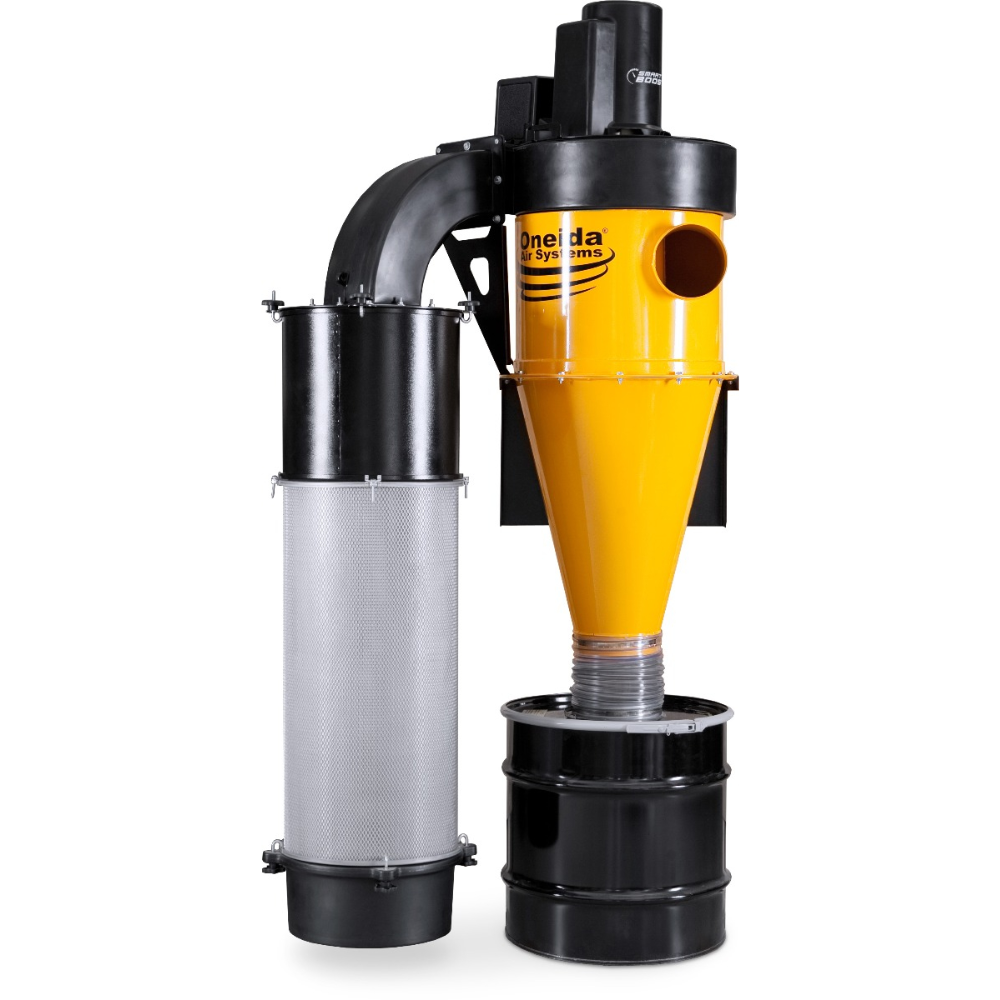

Oneida Air Systems 5hp 1ph Dust Gorilla Pro SMART Boost 35 Gal. Wall-Mounted HEPA-GFM Cyclone Dust Collector - XGK050035W

✔ Trusted, Authorized Oneida Air Systems Dealer

✔ Price Match Guarantee!
✔ Free Shipping for a limited time
✔ No Sales tax except MI
✔ Warranty: 2 year manufacturers warranty
✔ Chat or Call 888-482-2668 anytime!

Ship timing typically 3-5 business days. Additional cost for residential and lift gate service.

👉 Buy Today & Transform Your Workshop! 🔥

$4,449.00

Notify me when back in stock

Key Features

  • SMART Boost Technology: Automatically adjusts motor speed to compensate for suction loss, delivering up to twice the airflow of traditional systems
  • Industrial 5HP U.S.-Made Fan Motor: Provides robust performance for simultaneous dust collection from multiple machines
  • HEPA-Grade Filtration: Removes over 99% of fine wood dust, ensuring superior air quality
  • Wireless RF Remote Control: Allows convenient operation from up to 100 feet away
  • Heavy-Gauge Steel Cyclone Separator: Features a long-tapered design for maximum pre-separation efficiency
  • Dust Sentry™ Bin Level Indicator: Infrared sensor with a flashing light to indicate when the dustbin is full
  • Stacking Sound Filter & Drop-in Silencer: Reduces noise output by up to 6 dBA for a quieter workspace
  • Steel Wall Mounting Bracket: Space-saving design suitable for various workshop layouts
  • cETLus Certified & NFPA Compliance Ready: Ensures safety and compliance with industry standards

The Oneida Air Systems 5HP Dust Gorilla Pro SMART Boost Cyclone Dust Collector (XGK050035W) delivers powerful dust extraction with advanced SMART Boost technology that automatically optimizes suction for maximum airflow. This high-efficiency, wall-mounted system features a 35-gallon steel drum, HEPA-grade filtration, and a wireless remote for convenient operation in large or complex workshop setups. Ideal for professional woodworking shops, it handles long duct runs and variable port sizes with ease

Product Specifications

Model Number XGK050035W
Horsepower 5 hp
Motor Type U.S. Motor
Motor Service Factor 1.15
Voltage 220-240V
Recommended Breaker 30A
Running Amps 18–23A
Motor FLA 19.5
Phase Single-Phase (Pre-Wired)
Frequency 60Hz
Power Connector 3 Bare Wires (2 Hot & Ground)
Power Cord Length 7 feet
Impeller Design Single-piece, backward inclined, non-ferrous
Impeller Diameter 15 inches
Actual CFM 1,395 CFM at 1.9" WC
Free Fan CFM 3,250 CFM
Max Suction 23" WC
Blast Gate Capacity Up to 3 Gates
Noise Level 75–87 dBA at 10 ft
Motor Speed Variable
Separation Efficiency Over 99% of fine dust removed
Filter Media HEPA Grade ePTFE
Filtration Efficiency E12 Minimum Rating
Filter Surface Area 110 sq ft

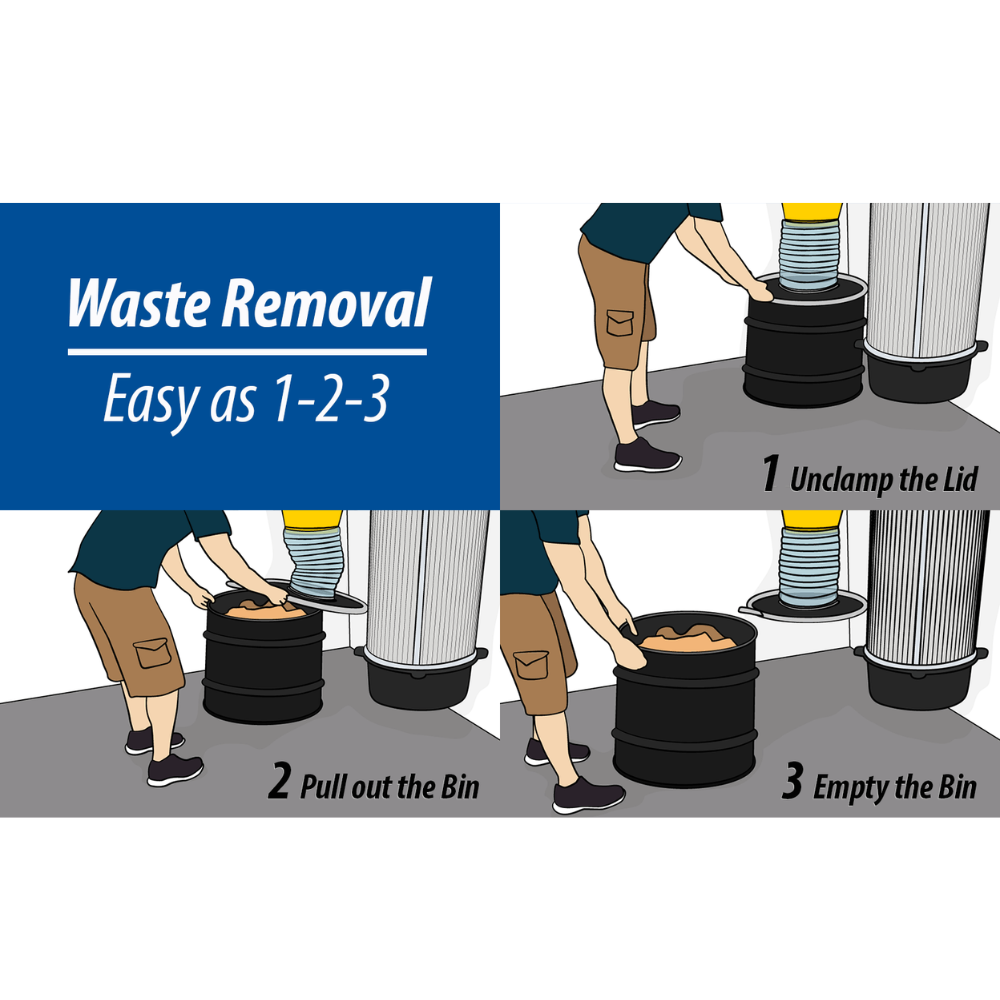

Waste Bin Capacity 35 Gallons
Remote Control Included (See Item #AMR000000 for keyfobs)
Construction Material Cold Rolled Steel
Weld Type Seam Welded
Static Rating Conductive (Metal)
Color Yellow
Inlet Size 7 inches
Outlet Dimensions 7-3/8" x 6-3/8" (Square ID)
Discharge Size 9 inches
Width 48 inches
Depth 30 inches

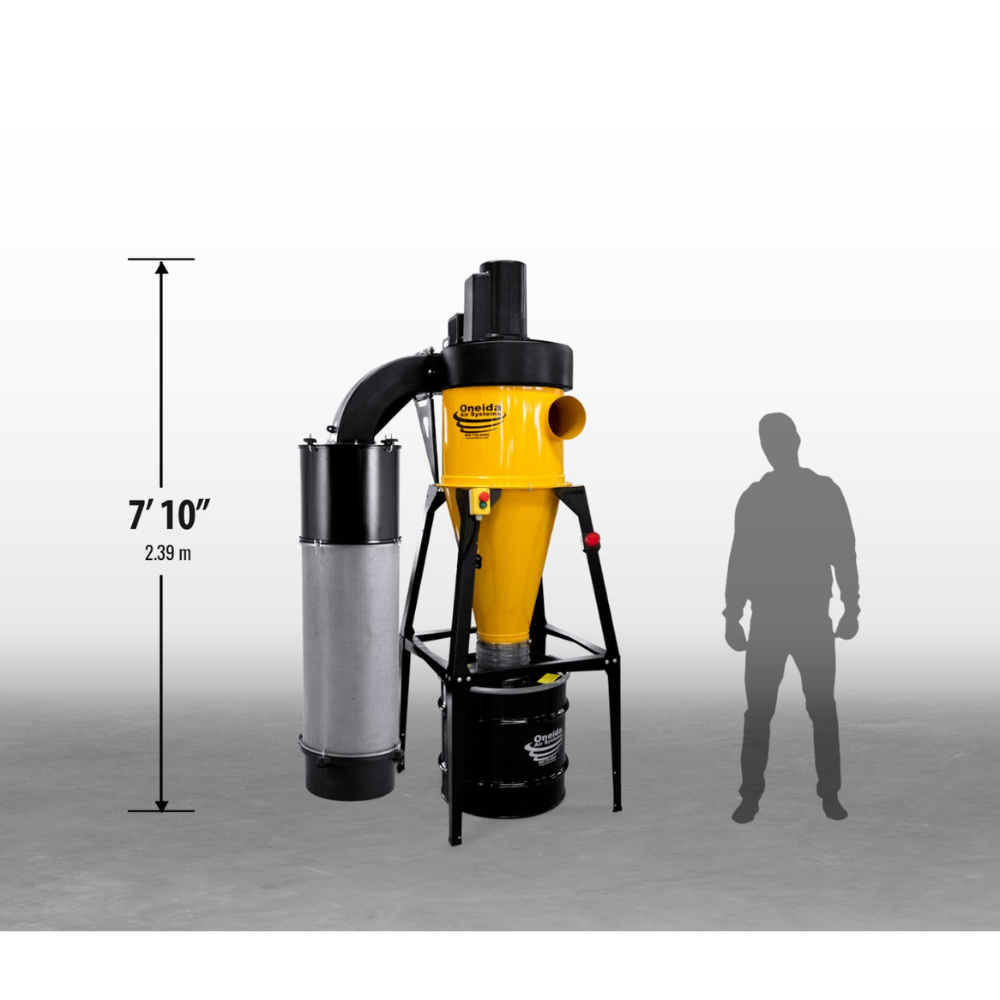

Height 94 inches
Inlet Height 66.5 inches
Weight 337 lbs
Included Components Motor, Starter, SMART Boost, Cyclone, Filters, Mount Bracket, Bin, Remote, Hardware
Manufacturer Oneida Air Systems
Country of Origin Made in USA
