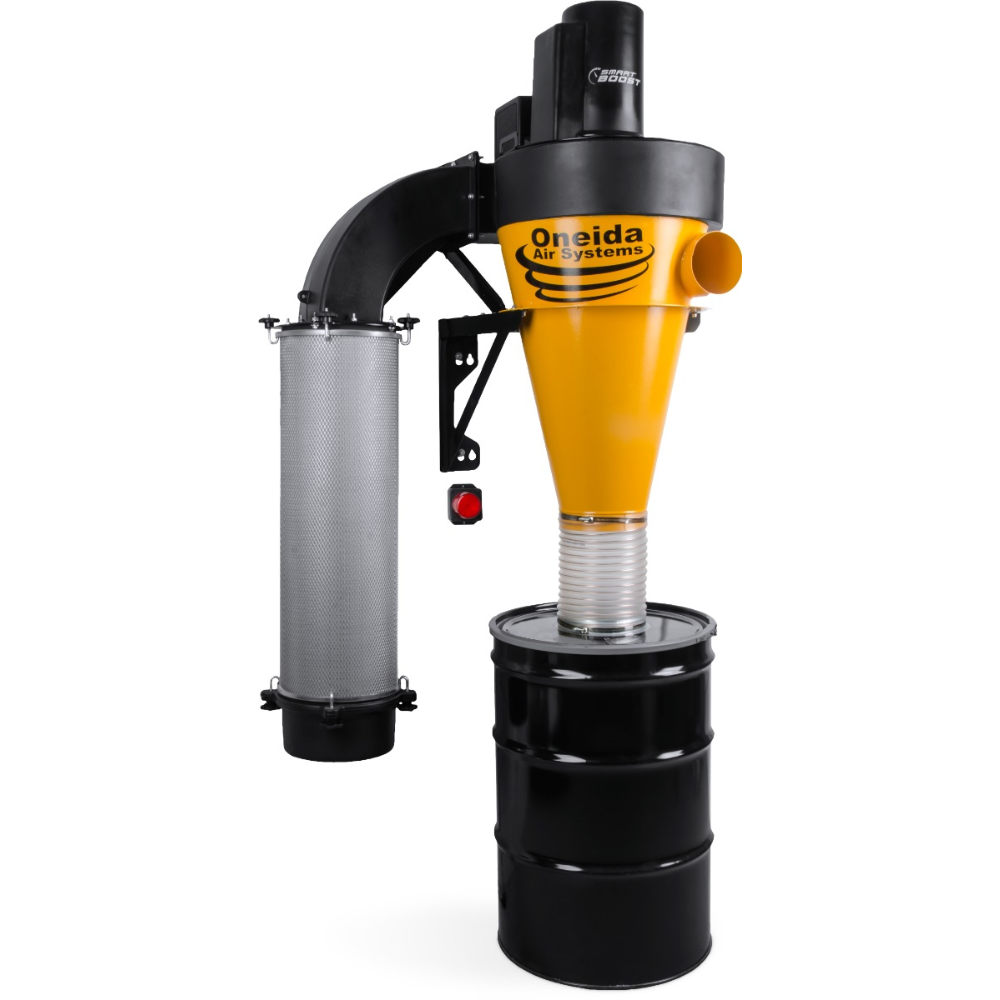

Oneida Air Systems 3hp V-System 3000 SMART Boost 55 Gal. Wall-Mounted HEPA-GFM Cyclone Dust Collector - XXVS300055W

✔ Trusted, Authorized Oneida Air Systems Dealer

✔ Price Match Guarantee!
✔ Free Shipping for a limited time
✔ No Sales tax except MI
✔ Warranty: 2 year manufacturers warranty
✔ Chat or Call 888-482-2668 anytime!

Ship timing typically 3-5 business days. Additional cost for residential and lift gate service.

👉 Buy Today & Transform Your Workshop! 🔥

$3,999.00

Notify me when back in stock

Key Features

  • SMART Boost Technology: Automatically adjusts motor speed to maintain airflow, boosting suction by up to twice the normal rate through smaller or mixed ports, ideal for CNC machines and long duct runs
  • 3HP U.S.-Made Motor: Provides continuous duty performance with a service factor of 1.15, ensuring reliable operation
  • HEPA-Grade ePTFE Filter: Offers E12-rated filtration efficiency with a 95 sq ft surface area, capturing over 99% of fine dust particles

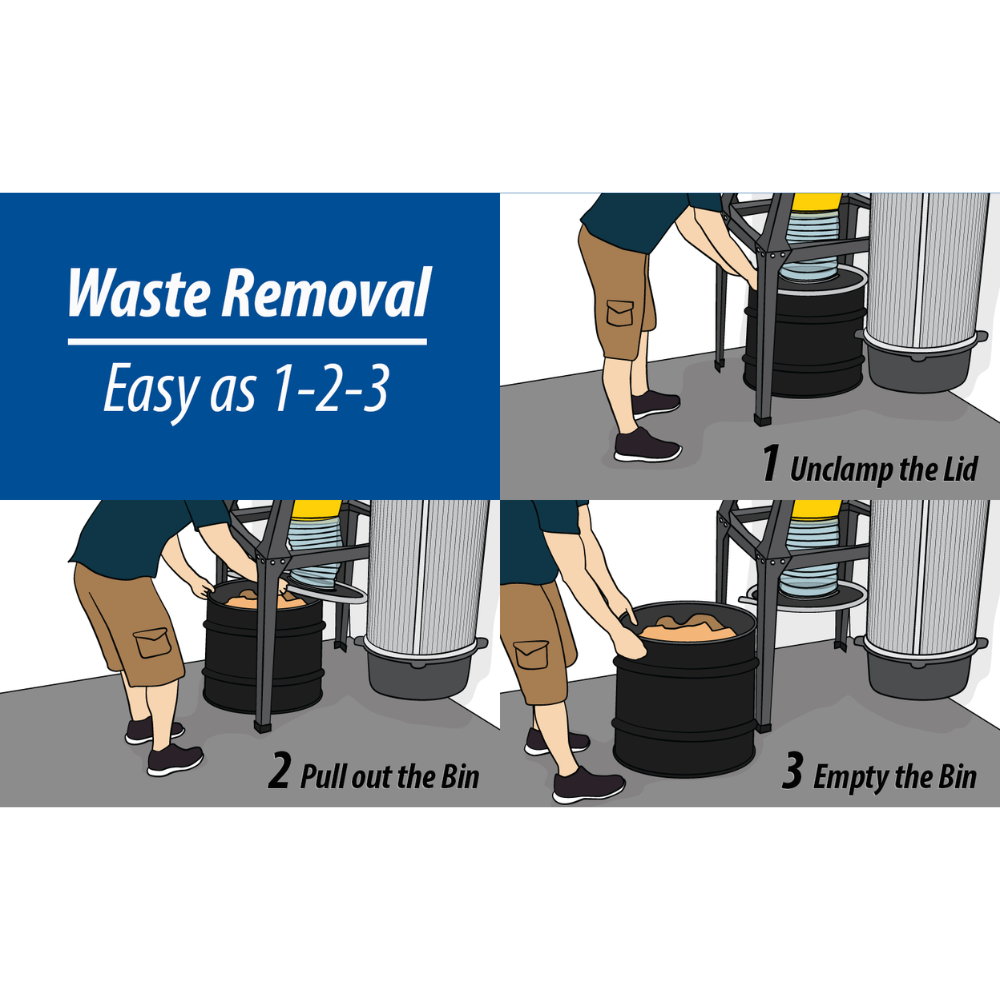

  • 55-Gallon Steel Dust Bin: Equipped with a quick-release lid and Dust Sentry™ fill level indicator for easy disposal and monitoring
  • Noise Reduction Features: Operates at a quiet 77 dBA at 10 feet, thanks to integrated sound filters and a drop-in silencer

The Oneida Air Systems 3hp V-System 3000 SMART Boost 55 Gal. Wall-Mounted HEPA-GFM Cyclone Dust Collector delivers 2,940 CFM airflow for efficient dust extraction. Its HEPA-grade ePTFE filter captures 99% of fine dust, ensuring clean air. The system features a 3HP motor, 55-gallon steel bin, and operates quietly at 74 dBA.

Product Specifications

Model Number XXVS300055W
Motor Power 3 HP
Motor Brand U.S. Motor
Service Factor Rating 1.15
Voltage Input 220-240V
Circuit Breaker Requirement 30A
Amp Range 15-17.5A
Electrical Phase Single-Phase (Pre-Wired)
Frequency Rate 60Hz
Wiring Type 3 Bare Wires (2 Hot, 1 Ground)
Cord Length 7 ft
Fan Type Backward Inclined, Non-Sparking
Impeller Diameter 15"
Operational Air Volume 1,030 CFM @ 2" W.C.
Max Vacuum Pressure 21" W.C.
Sound Emission 77 dBA @ 10 ft
Motor Control Variable Speed
Dust Separation Rate 99%+ Fine Dust Removal
Filter Media HEPA-Grade ePTFE
Filter Rating E12 Minimum
Total Filter Area 95 sq ft
Collection Drum Capacity 55 Gallons
Remote Included Yes
Frame Material Cold Rolled Steel
Welding Technique Seam Welded
Static Conductivity Conductive Metal
Body Color Yellow
Inlet Port Size 6" Dia.
Outlet Shape & Size 7-3/8" W x 6-3/8" H (Square)
Discharge Diameter 9" Dia.
Unit Width 49"
Unit Depth 33"

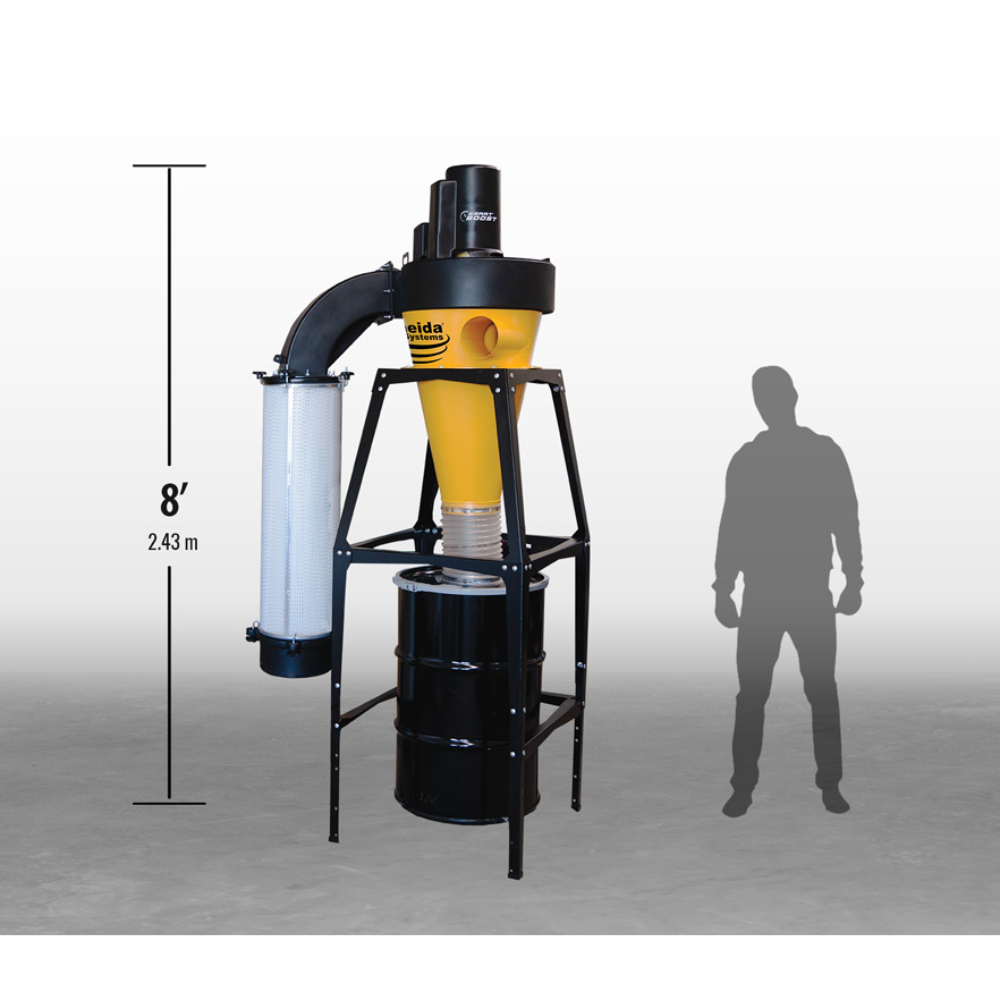

Unit Height 96"
Inlet Height 70"
Net Weight 315 lbs
Package Contents Blower, SMART Boost Controller, Cyclone, Filter, Bin, Silencer, Remote, Hardware
Brand Oneida Air Systems
Manufacturing Origin Made in USA
Description

The Oneida Air Systems 3hp V-System 3000 SMART Boost 55 Gal. Wall-Mounted HEPA-GFM Cyclone Dust Collector delivers 2,940 CFM airflow for efficient dust extraction. Its HEPA-grade ePTFE filter captures 99% of fine dust, ensuring clean air. The system features a 3HP motor, 55-gallon steel bin, and operates quietly at 74 dBA.
