Oneida Air Systems 3hp 230V V-System 3000 35 Gal. Wall-Mounted HEPA-GFM Cyclone Dust Collector - XXVM003000W

✔ Trusted, Authorized Oneida Air Systems Dealer

✔ Price Match Guarantee!
✔ Shipping calculated at checkout
✔ Warranty: 2 year manufacturers warranty
✔ Chat or Call 888-482-2668 anytime!

👉 Buy Today & Transform Your Workshop! 🔥

$3,499.00

Notify me when back in stock

Key Features

  • Powerful 3HP 230V U.S. Made Motor – Reliable performance for large workshops or multiple tools
  • Magnetic Starter with Overload Protector – Ensures safe, durable operation
  • Wireless RF Remote Control Keyfob – Easy operation from up to 100 feet away
  • High-Efficiency Cyclone Separator – Removes over 99% of fine wood dust, reducing filter clogging
  • HEPA-Grade ePTFE Filter Media – Offers exceptional filtration with an E12 minimum efficiency rating
  • Low-Noise Operation with Stacking Sound Filter & Drop-in Silencer – Operates at only 74 dBA for a quieter work environment

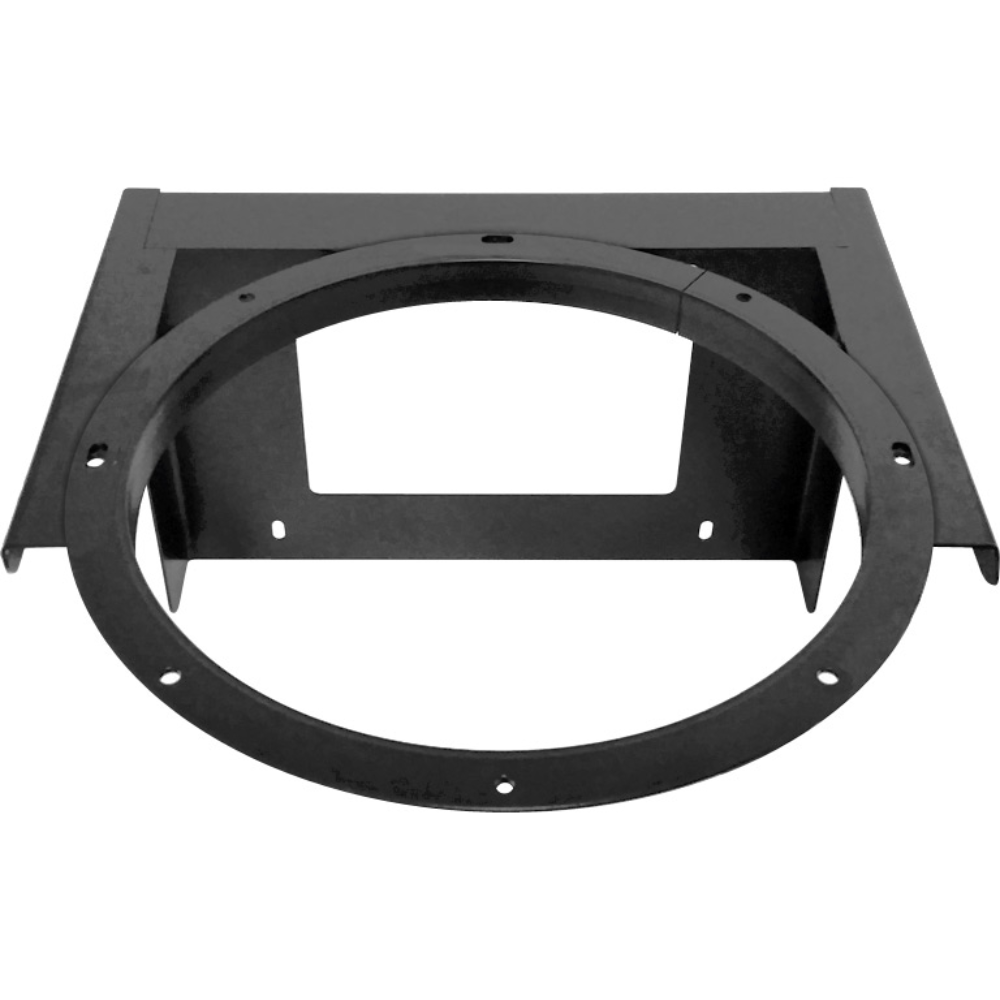

  • Steel Wall Mounting Bracket – Space-saving design for easy installation in smaller shops

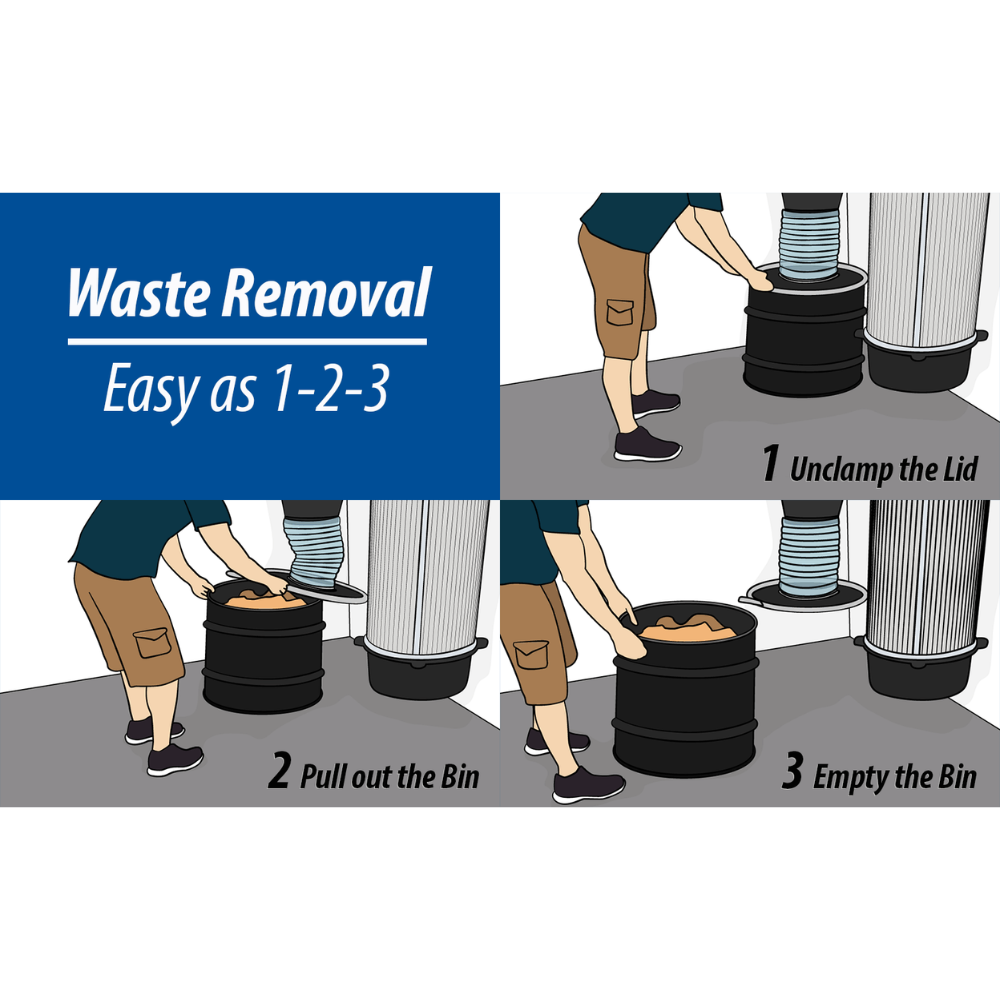

  • 35-Gallon Reinforced Steel Dust Bin – Large capacity with quick-release lid for easy disposal
  • Dust Sentry Bin Fill Level Indicator – Alerts users when the bin is full, reducing downtime
  • cETLus Certified – Meets both U.S. and Canadian product safety standards
  • NFPA Compliance Ready – Built to comply with fire and safety regulations for woodworking applications
  • Compact and Durable Design – Constructed from high-quality materials for long-lasting use
  • Quiet Operation – Ideal for reducing noise levels in your workspace while maintaining high suction power

The Oneida Air Systems V-System 3000 Cyclone Dust Collector offers powerful dust extraction with its 3 HP, 230V motor, efficiently capturing over 99% of fine wood dust through its HEPA-grade filtration system. Designed for versatility, it features a wall-mounted configuration with a 35-gallon capacity, making it ideal for compact workshops seeking high-performance dust collection.

Product Specifications

Model Number XXVM003000W
Motor Output 3 HP
Motor Type U.S. TEFC Motor
Service Factor 1.0
Input Voltage 220-240V
Breaker Rating 20A
Current Draw 13A
FLA (Full Load Amps) 13
Electrical Phase Single-Phase (Pre-Wired)
Frequency 60Hz
Plug Type NEMA 6-20, 250V/20A
Power Cord 10 ft
Fan Configuration Backward Inclined, Non-Sparking
Impeller Diameter 15"
Performance Airflow 1,349 CFM @ 2.3" WC
Free Air CFM 2,940 CFM
Peak Suction 13" WC
Open Gate Capacity 2 Gates
Sound Level 74 dBA @ 10 ft
Motor Speed Fixed
Dust Separation Efficiency Over 99% of Fine Dust
Filter Media HEPA ePTFE
Filter Rating E12 Minimum
Total Filter Area 95 sq ft
Bin Volume 35 Gallons
Remote Control Included
Body Material Static Dissipative Polyethylene
Static Rating Static Dissipative
Color Black

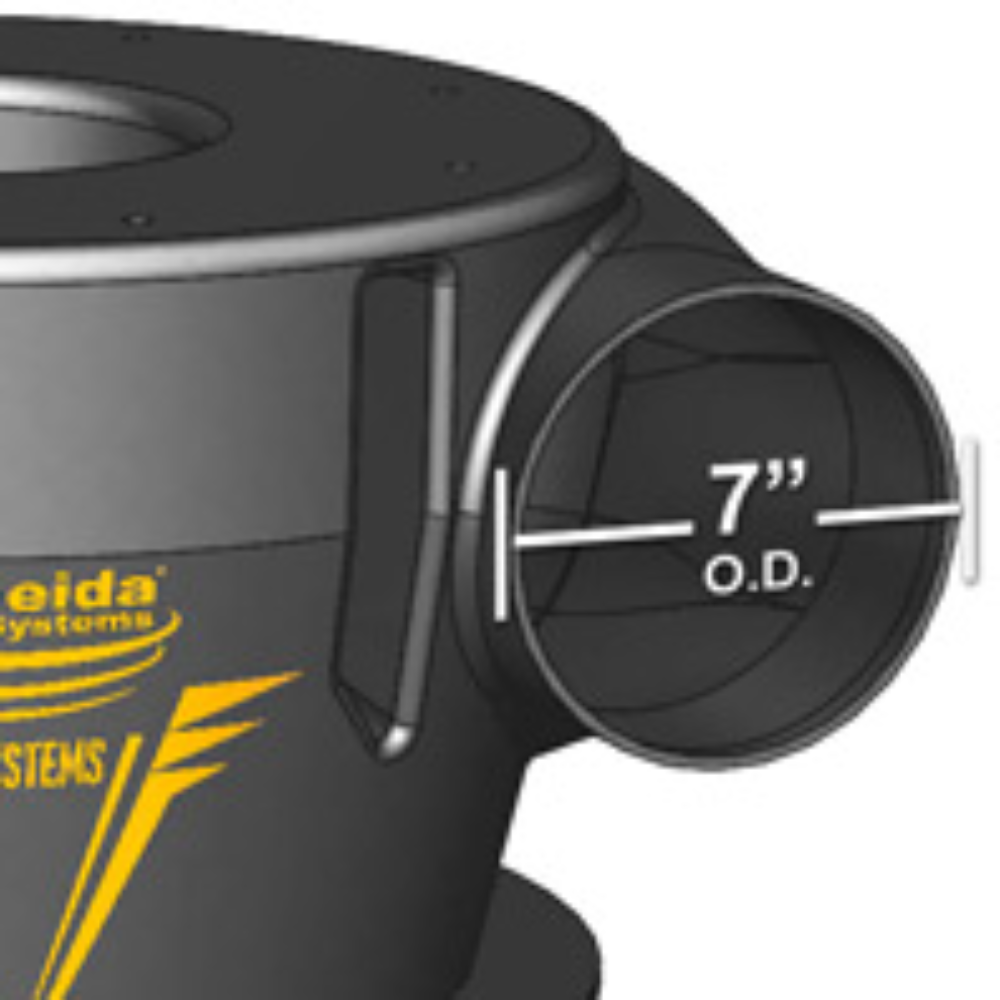

Inlet Dimension 7" OD
Outlet Opening 7-3/8" W x 6-3/8" H (Square)
Exhaust Diameter 7"
Overall Width 47"
Overall Depth 30"
Overall Height 88"
Inlet Height to Center 63"
Weight 258 lbs
Included Components Blower, Starter, Filter, Silencer, Cyclone, Bin, Wall Bracket, Remote, Hardware
Manufacturer Oneida Air Systems
Country of Origin Made in USA
Description

The Oneida Air Systems V-System 3000 Cyclone Dust Collector offers powerful dust extraction with its 3 HP, 230V motor, efficiently capturing over 99% of fine wood dust through its HEPA-grade filtration system. Designed for versatility, it features a wall-mounted configuration with a 35-gallon capacity, making it ideal for compact workshops seeking high-performance dust collection.
