Oliver Machinery 14" Swing Bench Model Drill Press - 10060.001
$749.99
Key Features
- Swing Capacity: Offers a 14-inch swing with a 13-1/4-inch drilling capacity, accommodating various workpiece sizes
- Drilling Capacity: Capable of drilling up to 3/4 inch in steel, providing versatility for different applications
- Chuck Specifications: Equipped with a 5/8-inch chuck with JT-3 taper, ensuring secure bit attachment
- Spindle Details: Features an MT-2 spindle taper and 3-1/8 inches of spindle travel for enhanced drilling depth
- Speed Range: Provides 12 spindle speeds ranging from 280 to 3,000 RPM, suitable for various materials and tasks
- Table Features: Includes an 11-1/2-inch round table that tilts 45 degrees and rotates 360 degrees, offering flexibility in positioning
- Motor Specifications: Powered by a 1/2 HP, 115V, single-phase motor drawing 8 amps, delivering reliable performance
- Construction Quality: Built with a robust 2-7/8-inch column diameter and a sturdy base measuring 9-5/8 inches by 16-3/4 inches for stability during operations

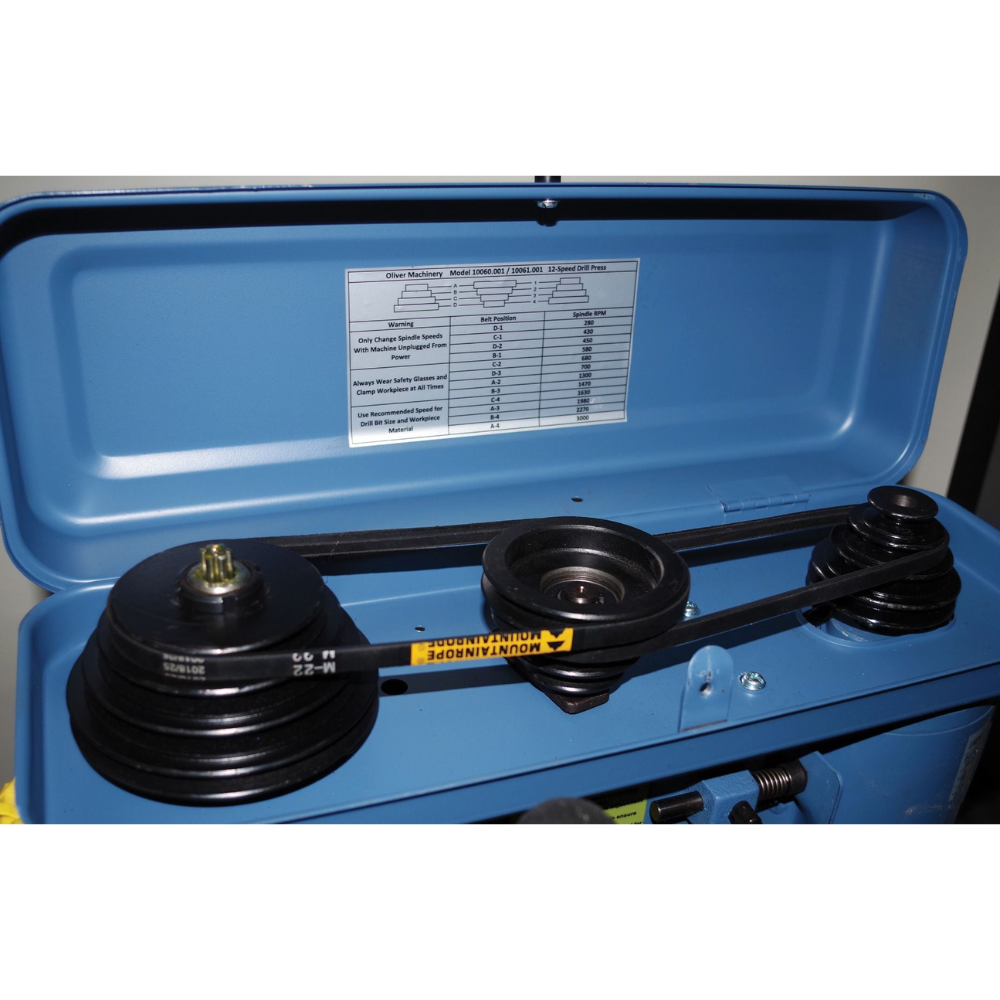

- Additional Features: Comes with a drill chuck guard, a 5/8-inch chuck and key holder, and cast iron pulleys to minimize vibration
- Dimensions and Weight: Measures 38-1/2 inches in overall height and weighs 105 lbs, making it a compact yet sturdy addition to any workshop

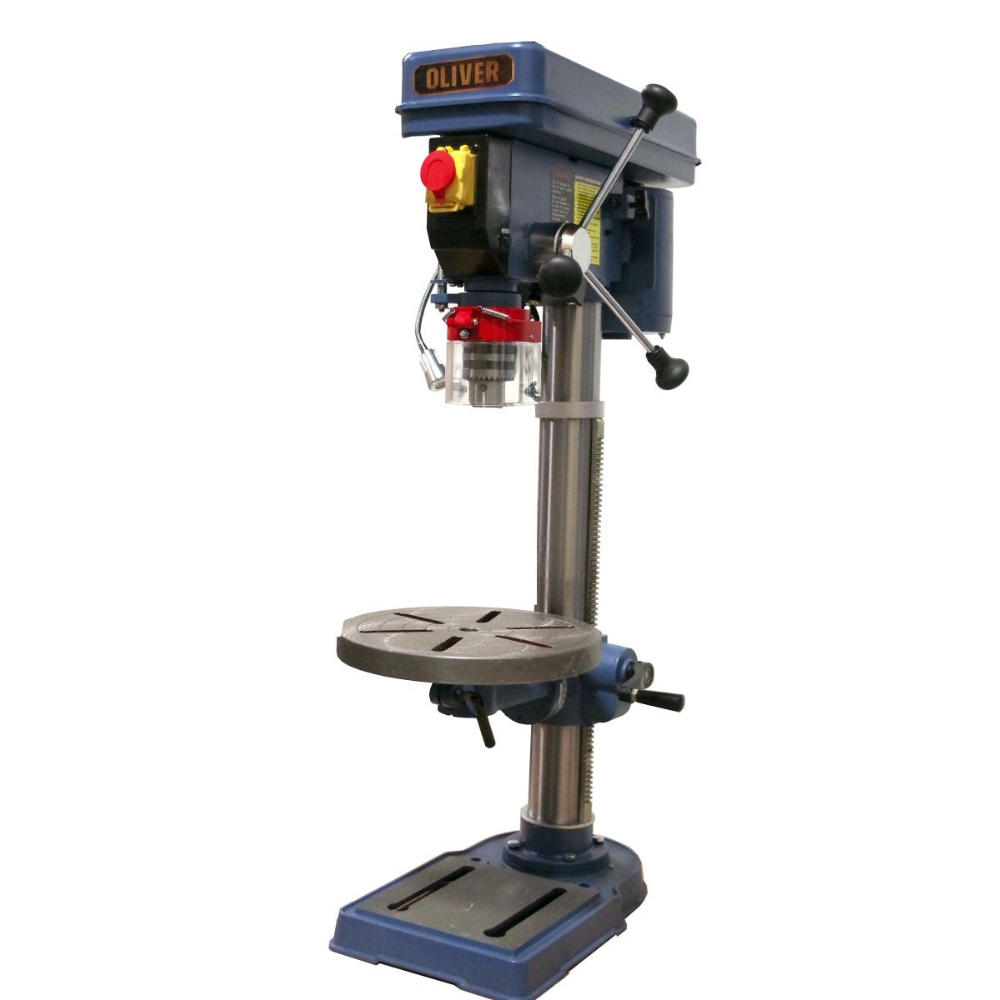

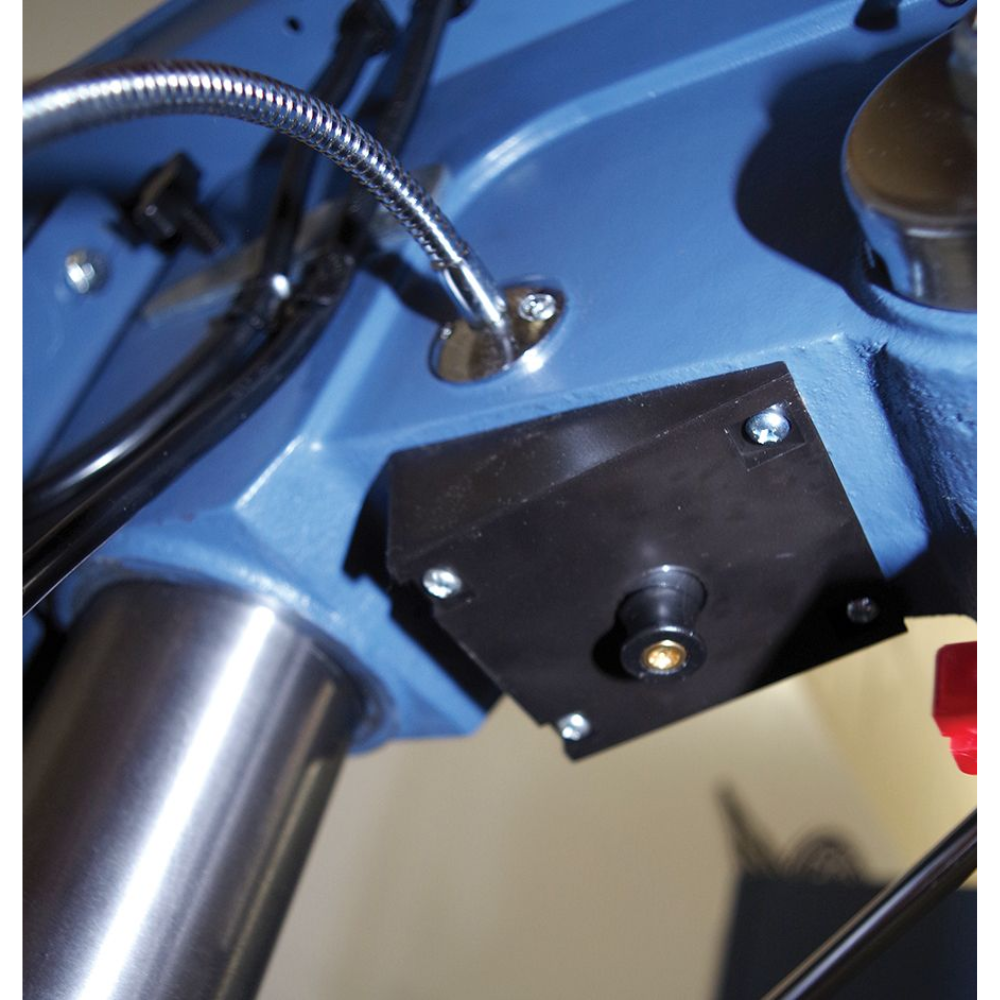

The Oliver Machinery 14" Swing Bench Model Drill Press (10060.001) is a versatile and reliable tool for precision drilling tasks. It features a powerful 1/2HP motor, 12 spindle speeds ranging from 280 to 3,000 RPM, and a table that rotates 360° and tilts 45° for flexible positioning. Additional highlights include a built-in laser pointer for accurate repeat drilling and high-quality sealed ball bearings for smooth spindle operation.
