MAKSIWA MORTISER 16MM (5/8'') 3HP - 1 PHASE - FH.16.C

by MAKSIWA

✔ Trusted, Authorized MAKSIWA Dealer

✔ Price Match Guarantee!
✔ Free Shipping for a limited time
✔ No Sales tax except MI
✔ Warranty: 2 year manufacturers warranty
✔ Chat or Call 888-482-2668 anytime!

Ship timing typically 3-5 business days. Additional cost for residential and lift gate service.

👉 Order Today & Enhance Your Workshop! 🔥

$1,040.00

Notify me when back in stock

Key Features

  • Powerful Motor Options: Equipped with a 3HP motor, available in both single-phase and three-phase configurations, providing robust performance for demanding woodworking tasks
  • Horizontal Drilling Capability: Designed for horizontal drilling in wood using straight cutters or drills, offering versatility for various woodworking applications
  • Eccentric Clamping Device: Features an eccentric clamping system that ensures secure and precise workpiece positioning during operations
  • Articulated Arms and Extended Base: Incorporates articulated arms and an extended base to accommodate larger workpieces and enhance stability during use
  • Multi-Position Hand Lever and Rotating Mortising Head: Includes a multi-position hand lever and a rotating mortising head, facilitating complex off-table projects and increased operational flexibility
  • Smooth Mortising Capability: Capable of producing smooth mortises in various materials, including hardwoods, ensuring clean and accurate cuts
  • Compact and Durable Design: Weighs approximately 242.5 lbs, offering a balance between portability and stability, suitable for professional workshops

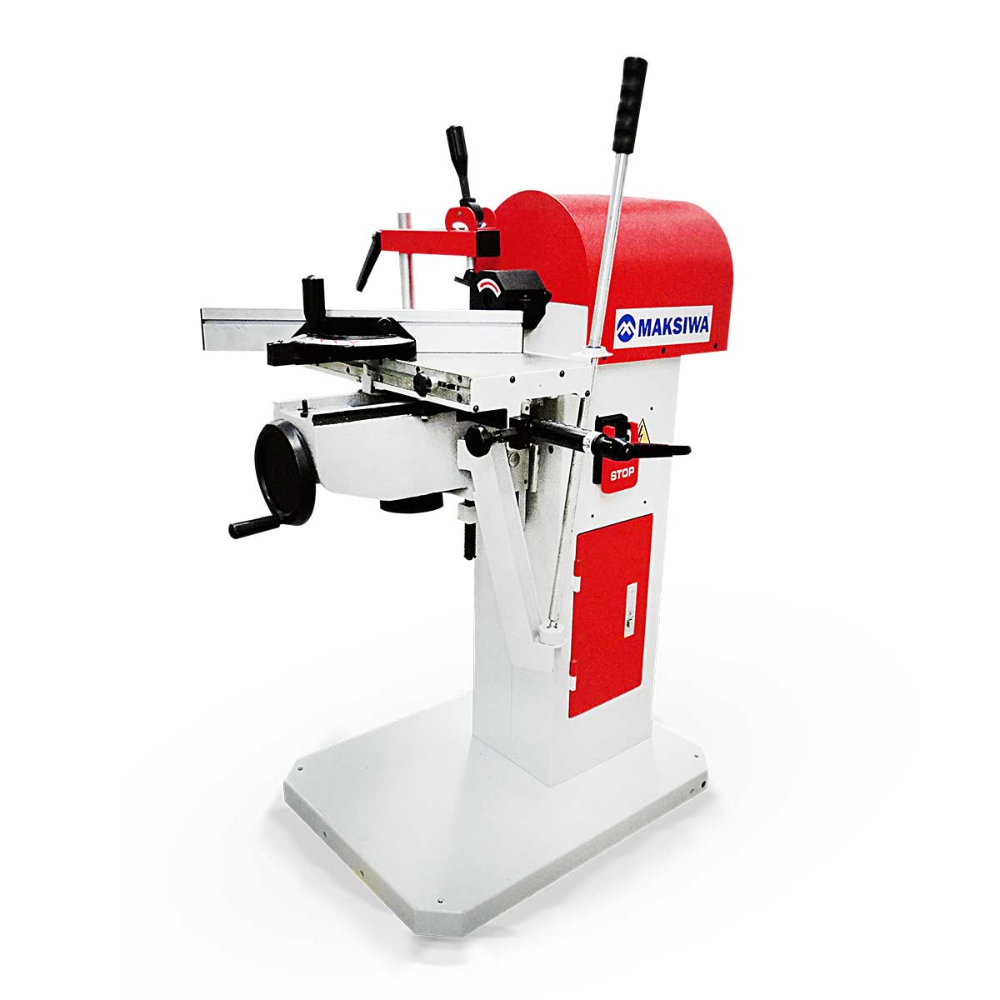

The Maksiwa FH.16.C Mortiser is a professional-grade woodworking machine featuring a powerful 3HP motor and a 5/8" chuck capacity, suitable for drilling horizontally in wood with straight cutters or drills. Designed for versatility, it includes an eccentric clamping device, articulated arms, and an extended base, making it ideal for both standard and complex mortising tasks.

Product Specifications

Model Number FH.16.C
Power Supply 1 Phase 220V
Motor Power 3 HP
Chuck Size 16mm (5/8 inch)
Spindle Speed 1400 RPM
Maximum Mortise Depth 100mm
Table Dimensions 24 inches x 20 inches
Table Tilt 0° to 45° for precise angle adjustments
Dust Collection 4-inch dust port for cleaner operation
Weight 250 lbs
Machine Type Floor-mounted, Heavy Duty
Max. Workpiece Size Up to 16mm thickness
Spindle Travel 100mm for greater precision
Adjustable Fence Yes, for accurate positioning of workpieces
Safety Features Emergency Stop Switch & Protective Guard
