Oliver Machinery 12” Heavy Duty Table Saw 7.5HP 3Ph w/Side Table w/52” Rails - 4045.004-A001

✔ Trusted, Authorized Oliver Machinery Dealer

✔ Price Match Guarantee!
✔ Shipping calculated at checkout
✔ Warranty: 2 year manufacturers warranty
✔ Chat or Call 888-482-2668 anytime!

👉 Order Now & Take Your Workshop to New Heights! 🔥

$3,852.99
Voltage

Notify me when back in stock

Key Features

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.

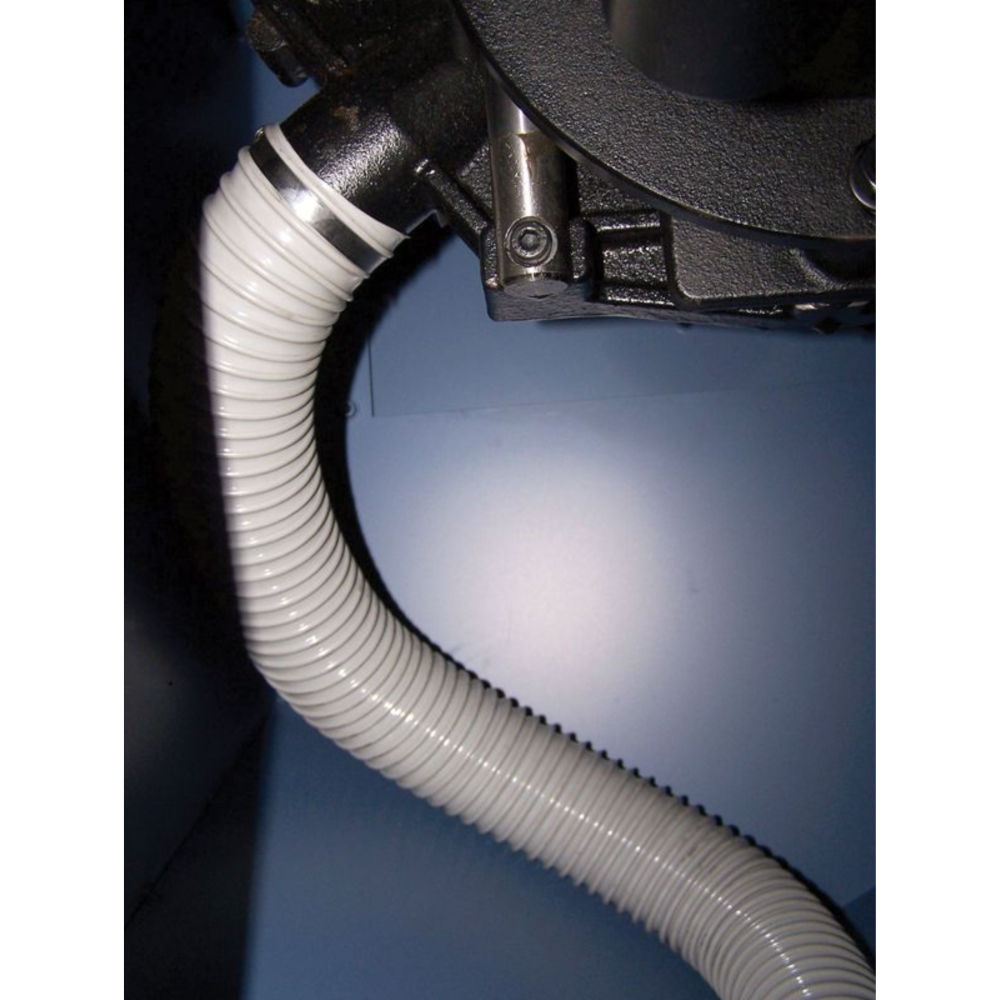

  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 1” arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy movement./

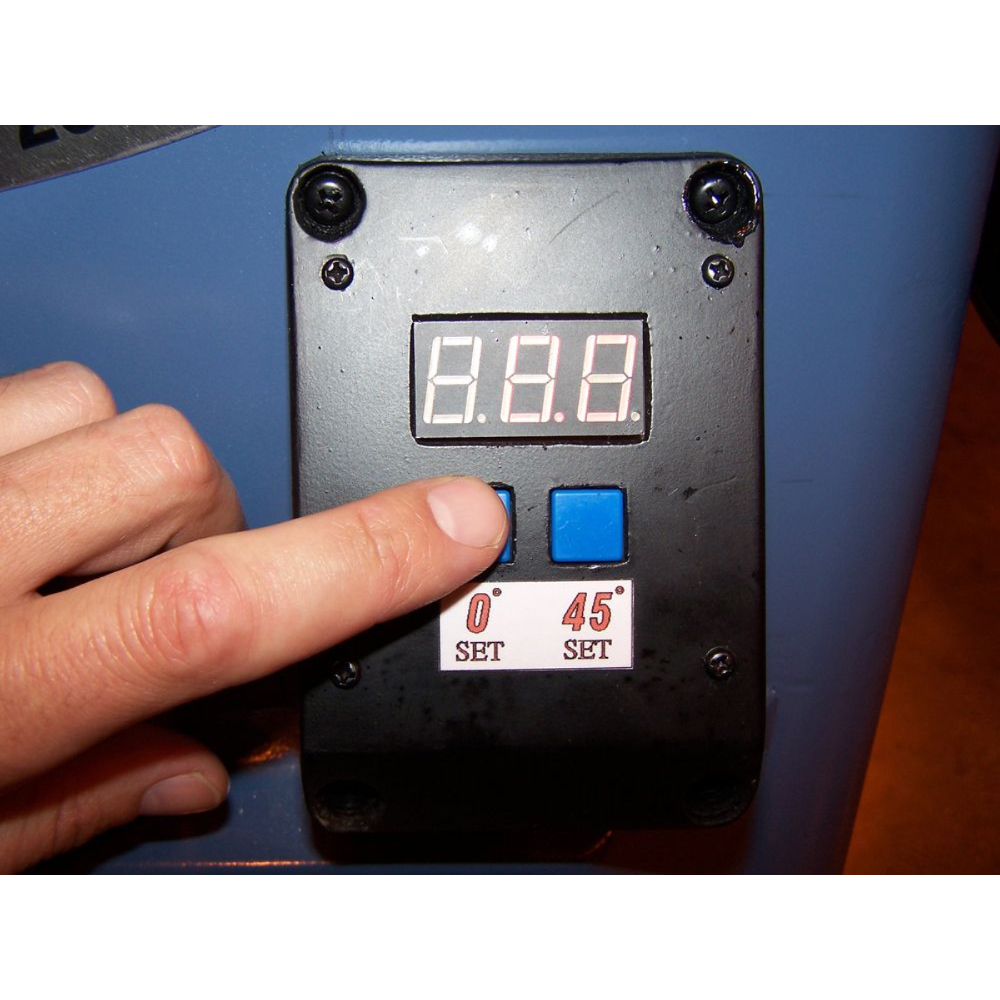

  • Includes digital readout of blade tilt.

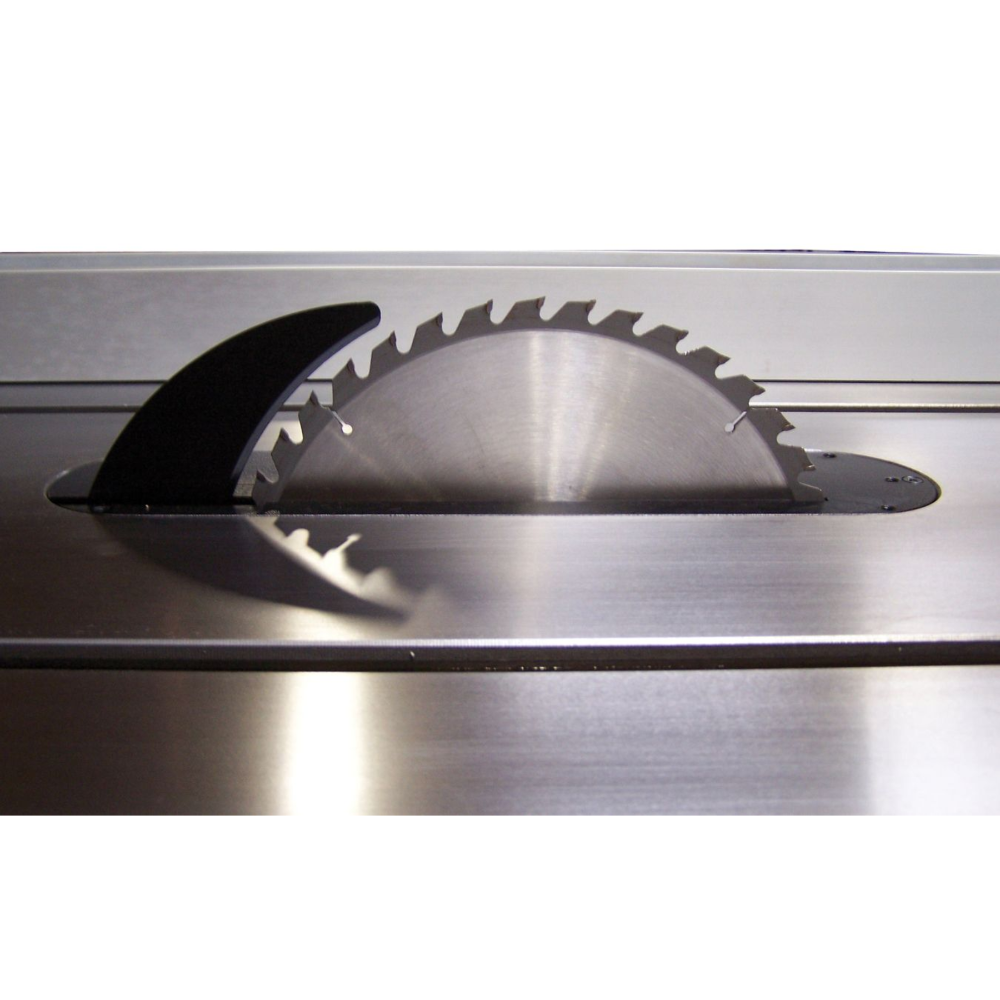

  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 52” rip capacity.
  • 52” rail includes wood side table and (1) cast iron extension wing.

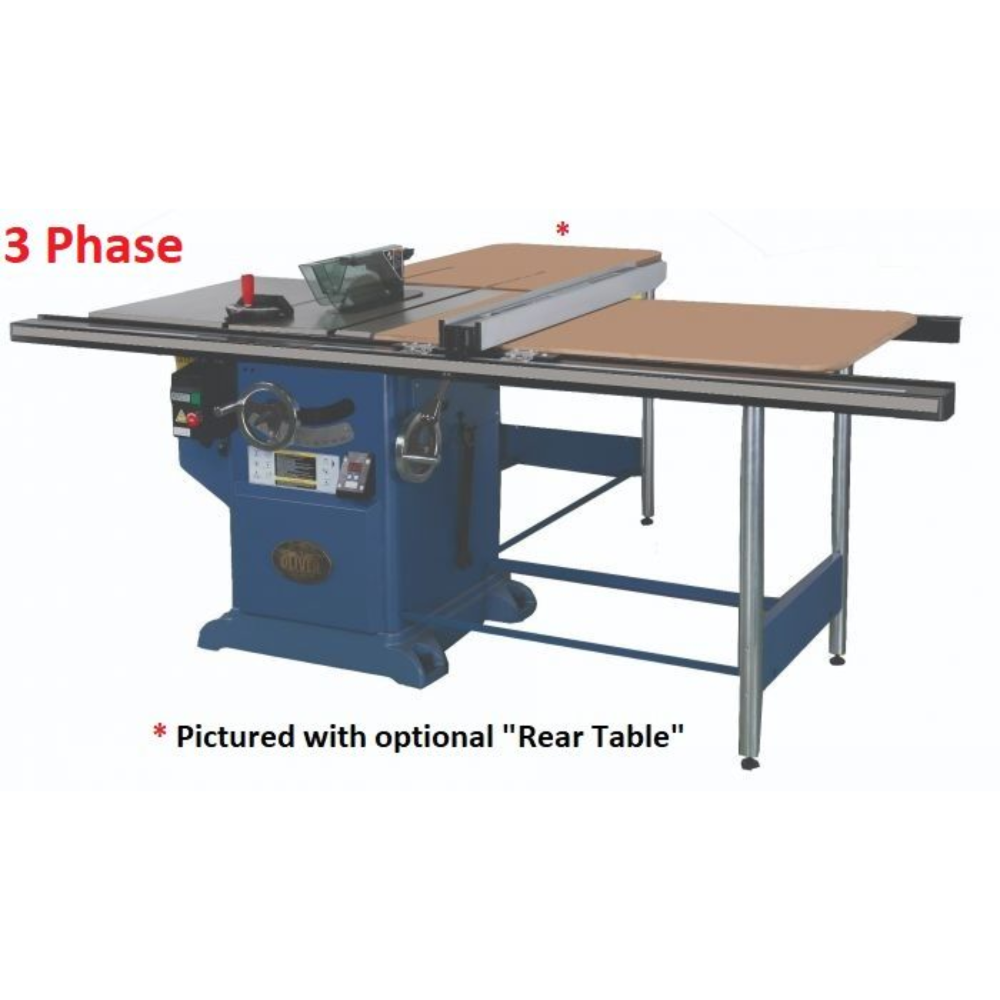

  • Optional rear support table available (pictured)
  • Magnetic controls with emergency off switch.

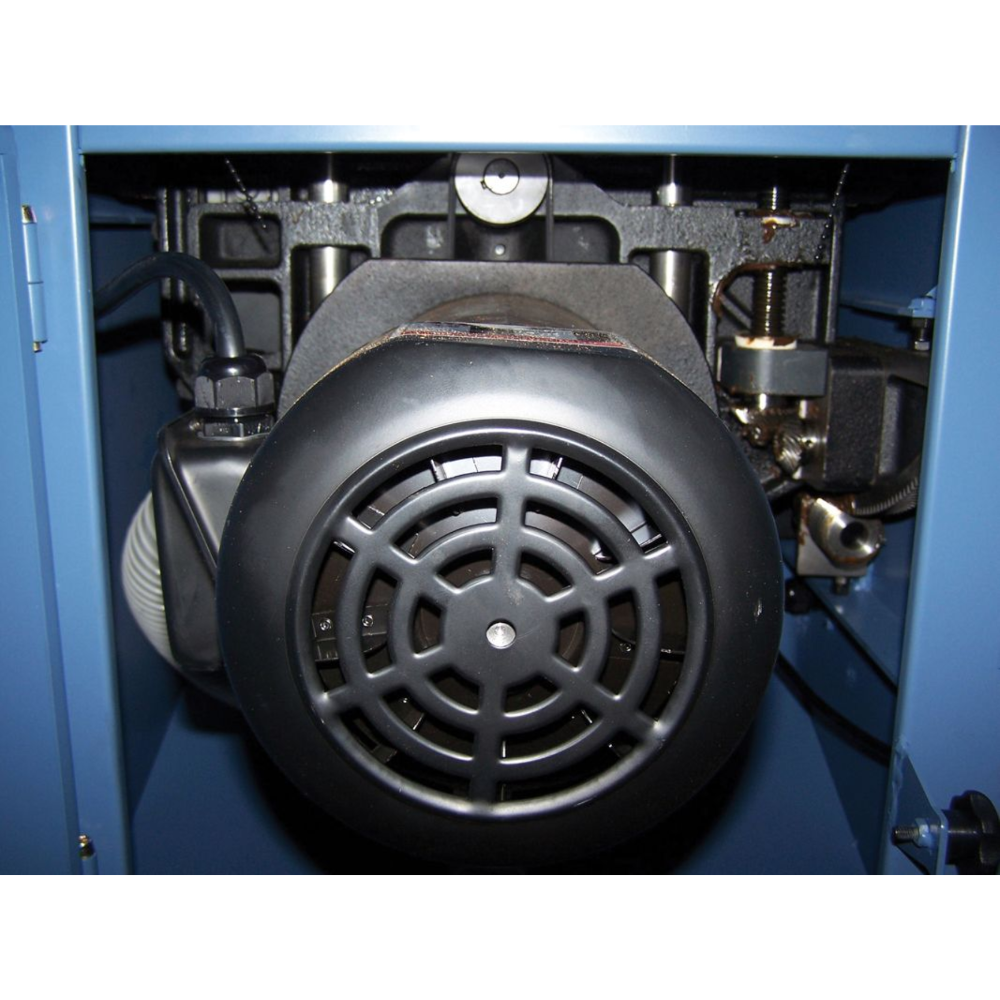

  • Powerful TEFC motor available in three phase.

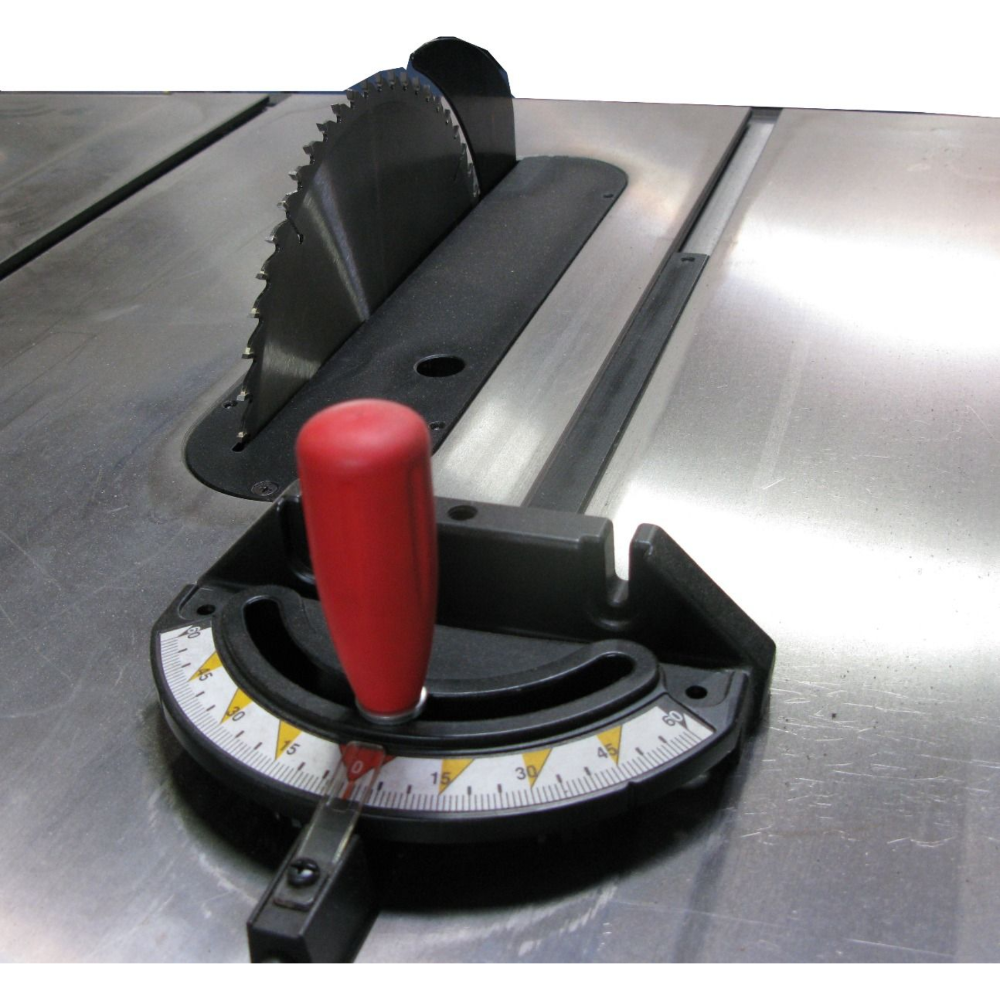

  • Miter gauge included.
  • Blade not included.

The Oliver Machinery 12" Heavy Duty Table Saw (Model 4045.004-A001) features a powerful 7.5HP 3-phase motor and a 52" rip capacity. It includes a side table for extra workspace and is built for precision and durability. Perfect for professional woodworkers and heavy-duty cutting.

Product Specifications

Model Number 4045.004.A001
Phase 3Ph
Rail Configuration Side table with 52” rail system
Stock Number 0
Blade Size 12-inch, 40-tooth blade included
Arbor Size 1 inch
Blade Tilt Direction Left tilt
Arbor Speed 3,450 RPM
Max Cut Depth at 90° 4 inches
Max Cut Depth at 45° 2-2/3 inches
Dado Capacity 13/16 inch
Right Rip Capacity 52 inches
Left Rip Capacity 12 inches
Dust Port Size 4 inches
Main Table Size 30-3/4” deep x 24” wide
Extension Wing Size 30-3/4” x 12”
Table Height 36 inches
Motor (3 Phase) 7.5HP, 3Ph, 220V/440V (Prewired 220V, 20/10 Amp)
Overall Dimensions 75”L x 45”W x 41”H
Net Weight 550 lbs
Gross Weight 750 lbs
Description

The Oliver Machinery 12" Heavy Duty Table Saw (Model 4045.004-A001) features a powerful 7.5HP 3-phase motor and a 52" rip capacity. It includes a side table for extra workspace and is built for precision and durability. Perfect for professional woodworkers and heavy-duty cutting.
