Oliver Machinery 12” Heavy Duty Table Saw 5HP 1Ph w/Side Table w/52” Rails - 4045.003-A001

✔ Trusted, Authorized Oliver Machinery Dealer

✔ Price Match Guarantee!
✔ Free Shipping for a limited time
✔ No Sales tax except MI
✔ Warranty: 2 year manufacturers warranty
✔ Chat or Call 888-482-2668 anytime!

Ship timing typically 3-5 business days. Additional cost for residential and lift gate service.

👉 Grab It Now & Revamp Your Workshop! 🔥

$3,852.99

Notify me when back in stock

Key Features

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.

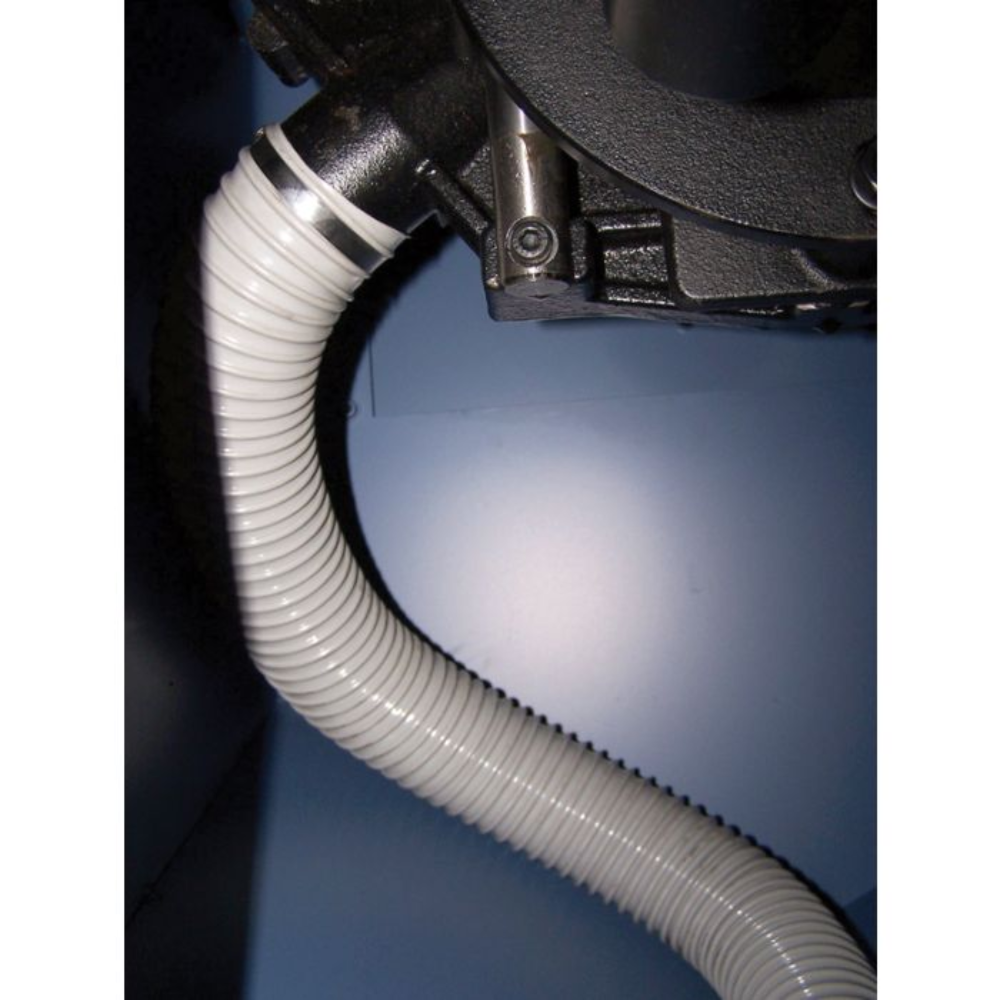

  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 1” arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.

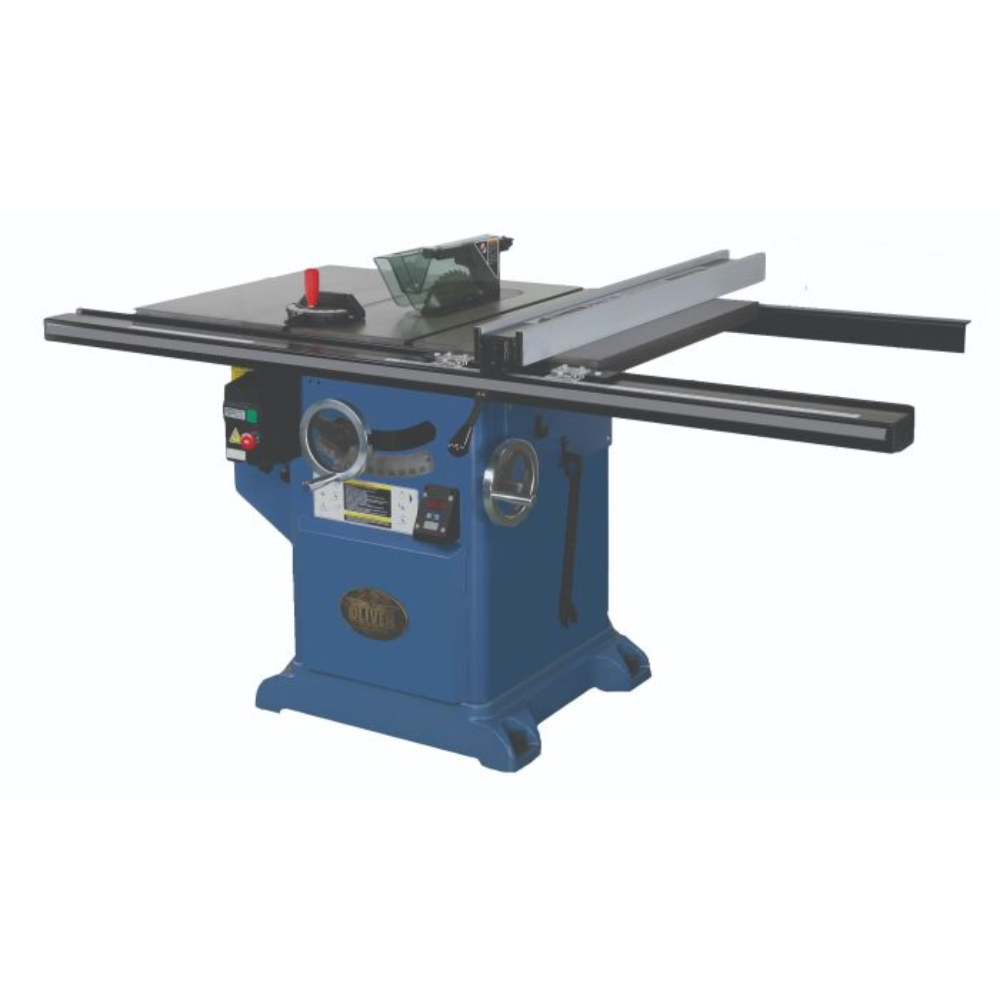

  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy movement./

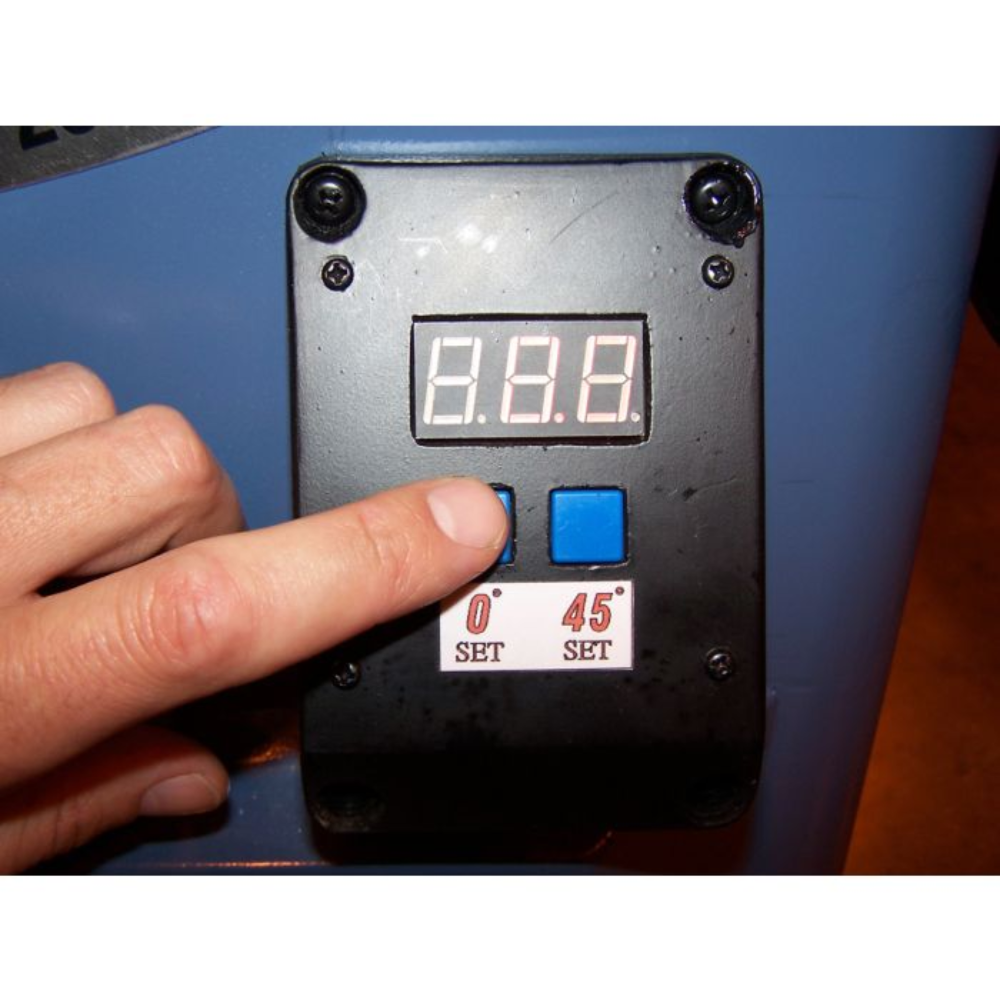

  • Includes digital readout of blade tilt.

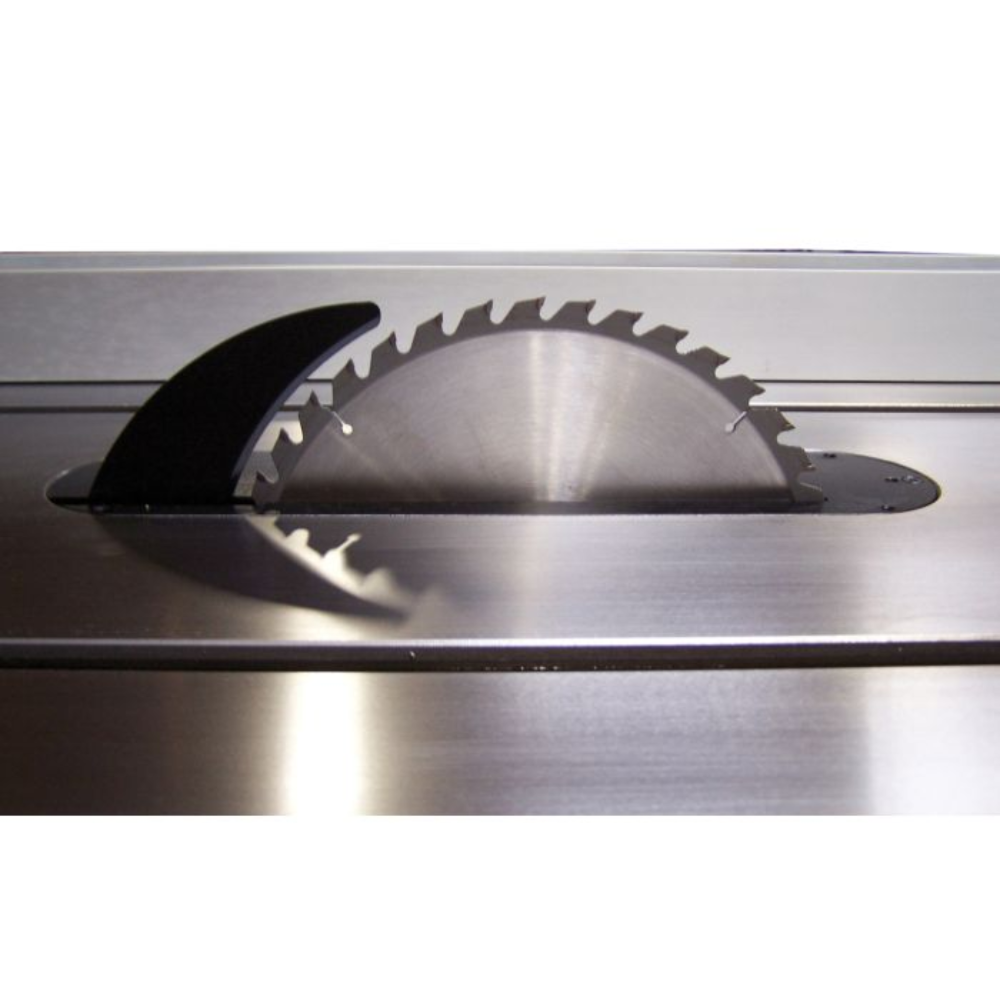

  • Riving knife splitter for added safety against kick-back.

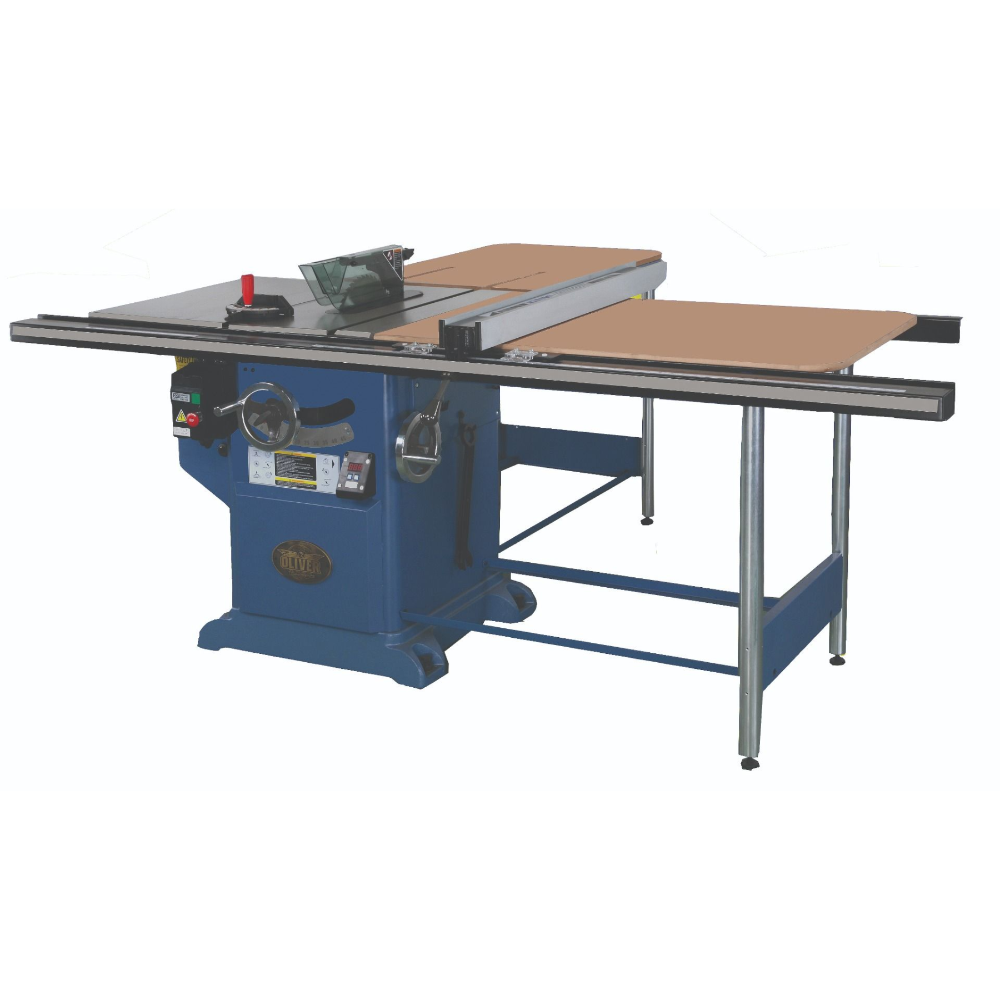

  • Optimus T-square fence available in 52” rip capacity.

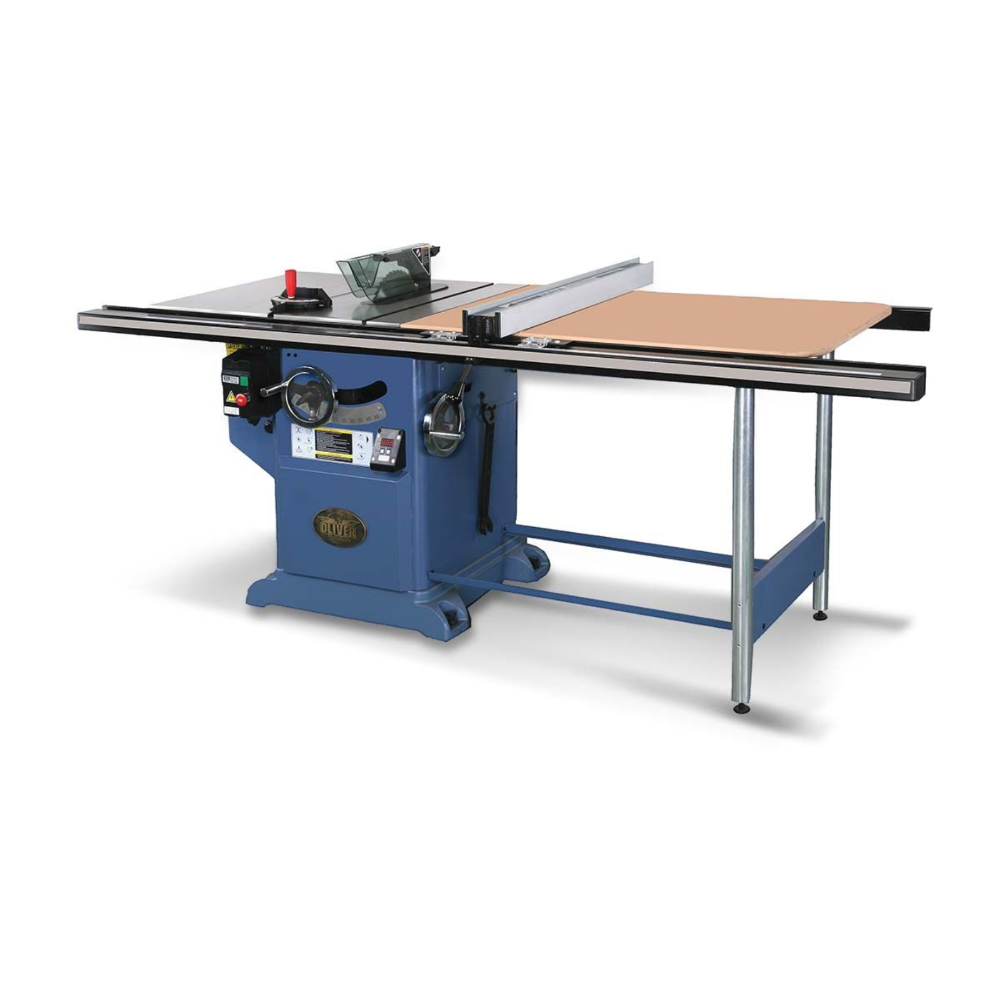

  • 52” rail includes wood side table and (1) cast iron extension wing.
  • Optional rear support table available (pictured)
  • Magnetic controls with emergency off switch.

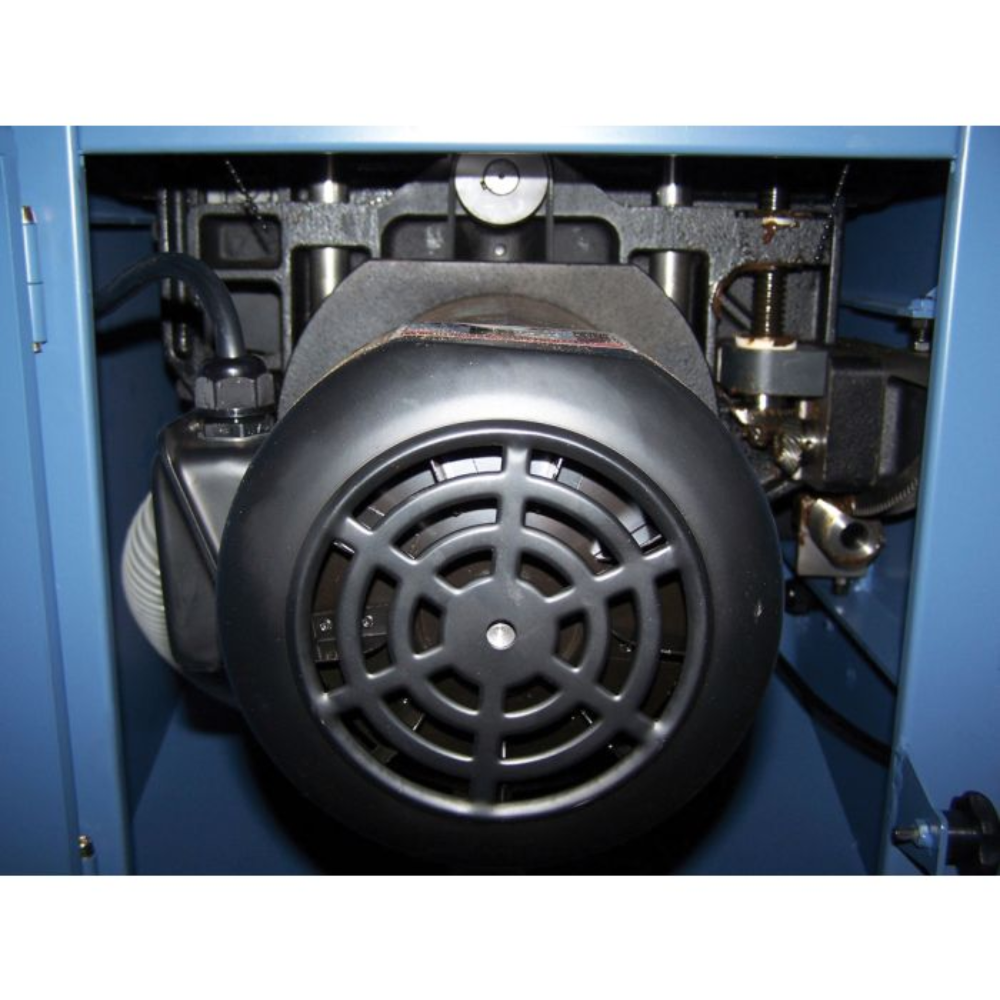

  • Powerful TEFC motor available in single phase.

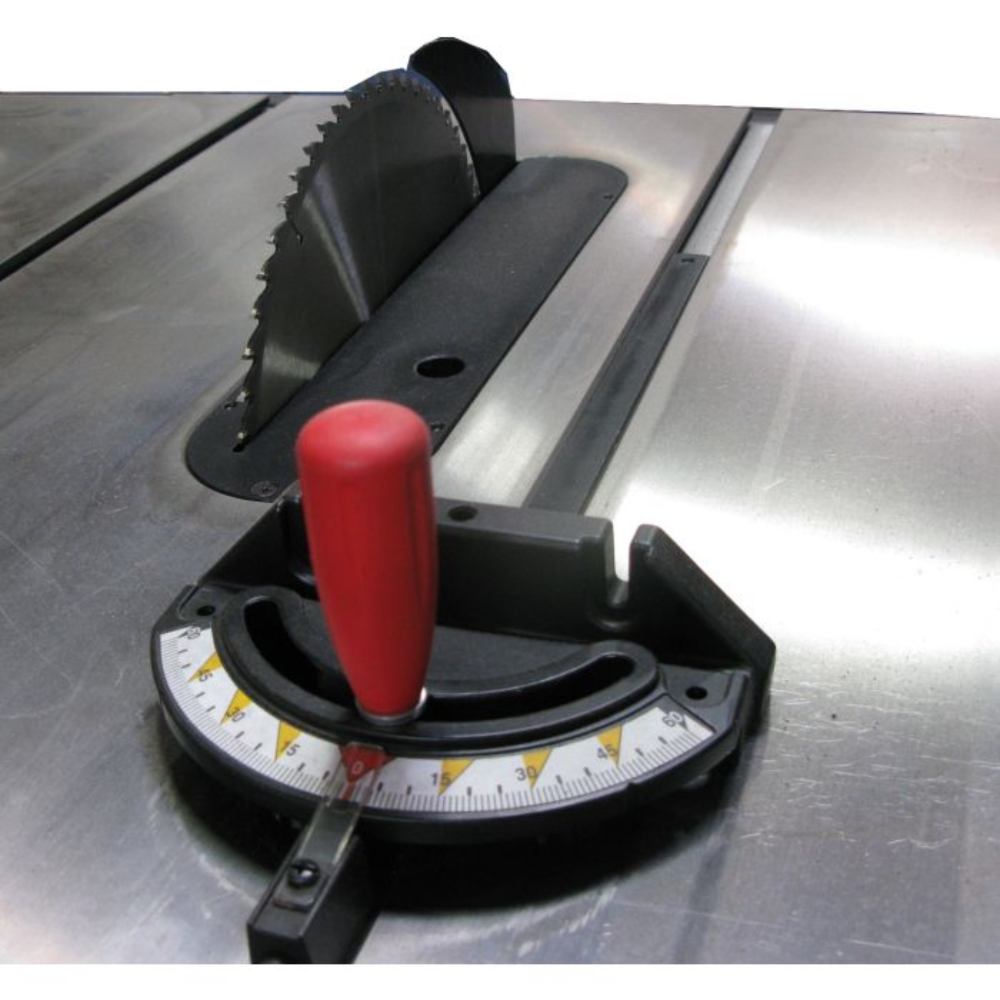

  • Miter gauge included.
  • Blade not included.

The Oliver Machinery 12" Heavy Duty Table Saw (Model 4045.003-A001) features a powerful 5HP single-phase motor, a spacious 52" rip capacity with side table, and a precision-ground 1" arbor. Its fully enclosed cabinet and blade dust shroud enhance dust management, while the hydraulic-assisted blade lift mechanism and large chrome hand wheels ensure user-friendly operation.

Product Specifications

Model Number 4045.003.A001
Phase 1Ph
Rail Configuration Includes side table with 52” rails
Stock Number 0
Blade Size 12-inch, 40-tooth blade included
Arbor Size 1 inch
Blade Tilt Direction Left tilt
Arbor Speed 3,450 RPM
Max Cut Depth at 90° 4 inches
Max Cut Depth at 45° 2-2/3 inches
Max Dado Width 13/16 inch
Rip Capacity Right 52 inches
Rip Capacity Left 12 inches
Dust Port Size 4 inches
Main Table Size 30-3/4”D x 24”W
Extension Wing Size 30-3/4” x 12”
Table Height 36 inches
Motor (1 Phase) 5HP, 1Ph, 220V (18 Amp)
Machine Dimensions 75”L x 45”W x 41”H
Net Weight 550 lbs
Shipping Weight 750 lbs
Description

The Oliver Machinery 12" Heavy Duty Table Saw (Model 4045.003-A001) features a powerful 5HP single-phase motor, a spacious 52" rip capacity with side table, and a precision-ground 1" arbor. Its fully enclosed cabinet and blade dust shroud enhance dust management, while the hydraulic-assisted blade lift mechanism and large chrome hand wheels ensure user-friendly operation.
