Oliver Machinery 9" x 138" Oscillating Edge Sander 3HP 230V 1Ph - 6320.001

✔ Trusted, Authorized Oliver Machinery Dealer

✔ Price Match Guarantee!
✔ Free Shipping for a limited time
✔ No Sales tax except MI
✔ Warranty: 2 year manufacturers warranty
✔ Chat or Call 888-482-2668 anytime!

Ship timing typically 3-5 business days. Additional cost for residential and lift gate service.

👉 Shop Now & Enhance Your Workspace! 🔥

$6,269.99
HP Model
Estimate Ship Date

Notify me when back in stock

Key Features

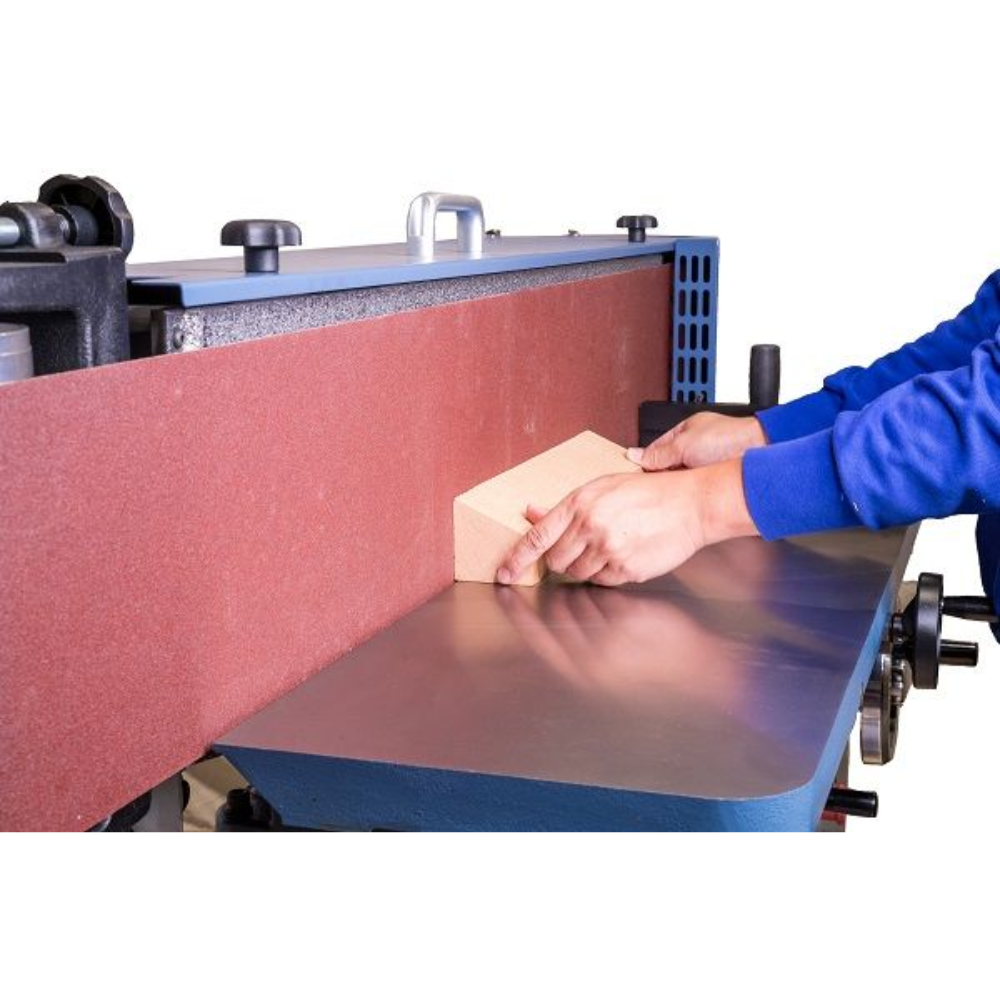

  • Large Sanding Belt: Features a 9" x 138.5" abrasive belt with adjustable oscillation for a superior finish

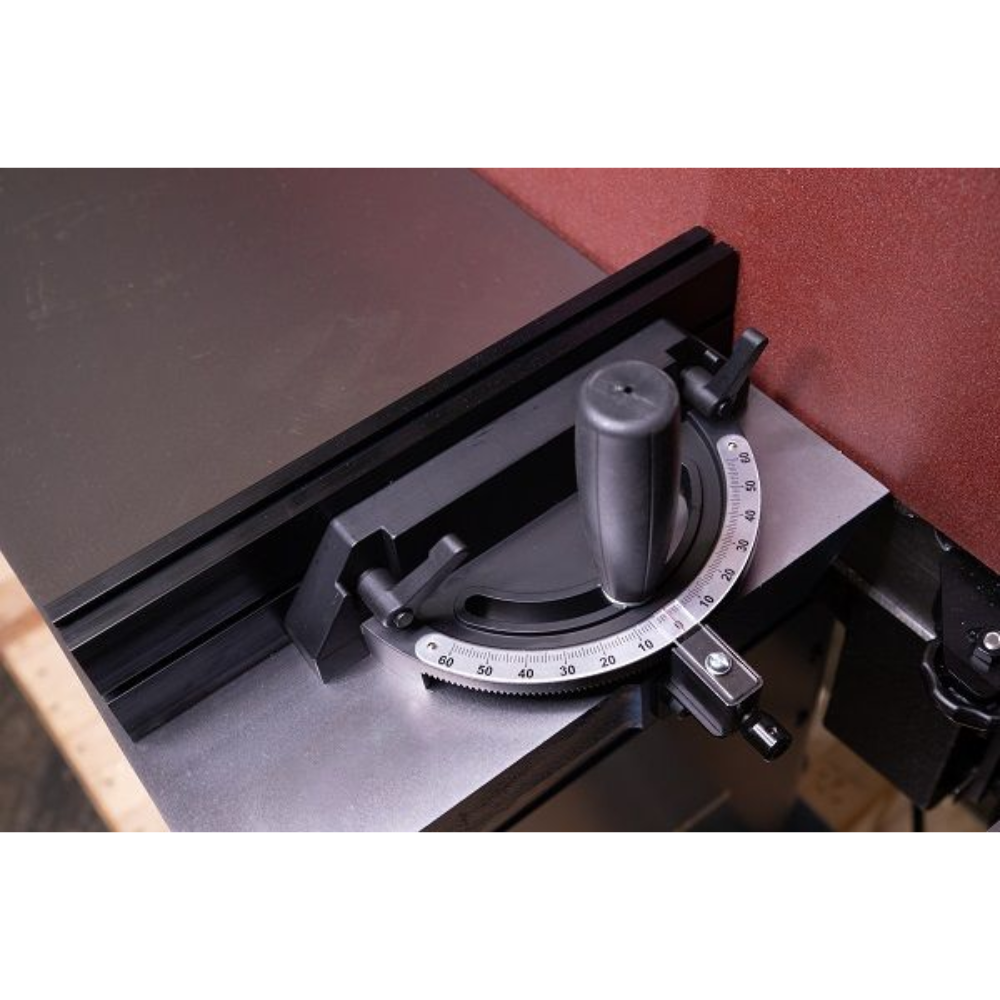

  • Heavy-Duty Cast Iron Tables: Equipped with precision-ground, vertically adjustable cast iron tables for enhanced stability and versatility
  • Spring-Assisted Main Table: The main table offers spring-assisted raising and lowering for user-friendly operation
  • Contoured Sanding Capability: An end table facilitates contoured sanding applications, expanding the sander's versatility
  • Precision-Balanced Drums: Drums are precision-balanced to ensure smooth operation and minimize vibration
  • Efficient Dust Collection: Includes a built-in 4" dust port for effective dust management and a cleaner work environment

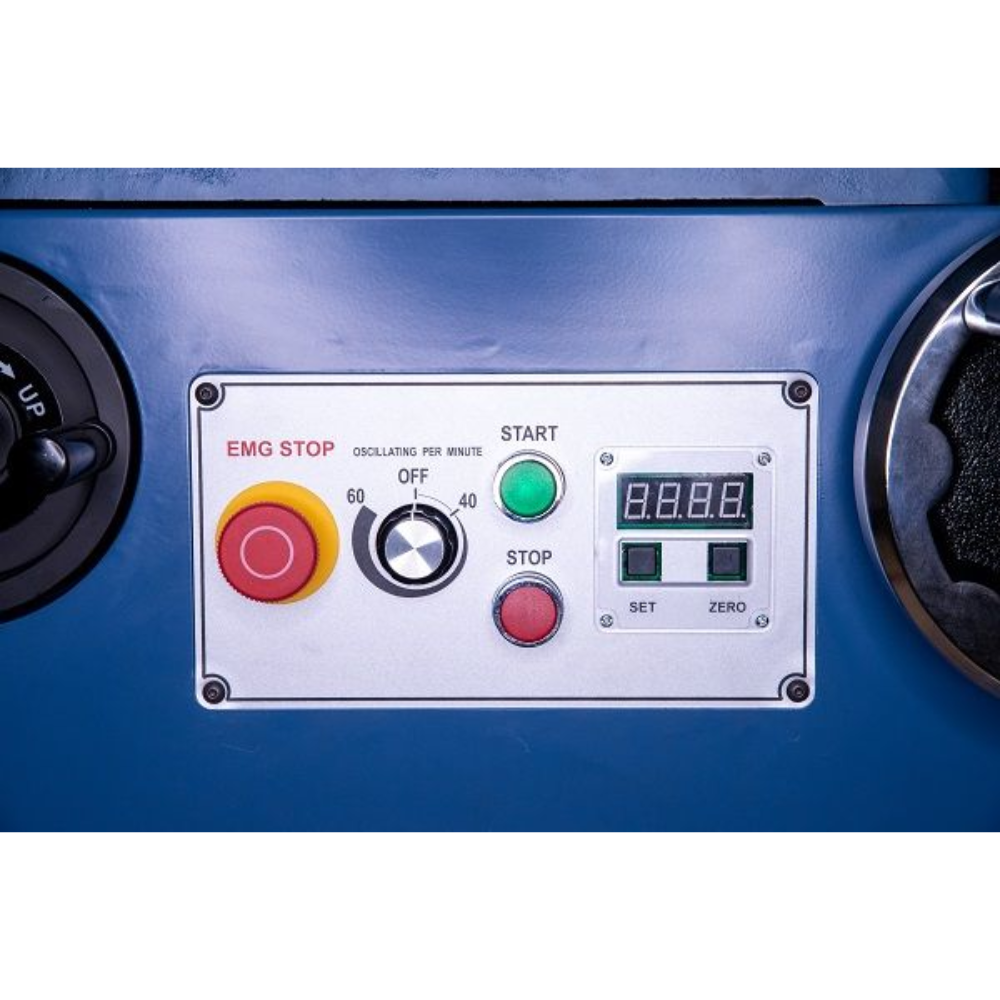

  • Safety Features: Incorporates magnetic controls to enhance user safety and protect the motor during operation
  • Powerful Motor: Powered by a 3HP Totally Enclosed Fan Cooled (TEFC) motor, available in single-phase 230V or three-phase configurations to suit various power requirements

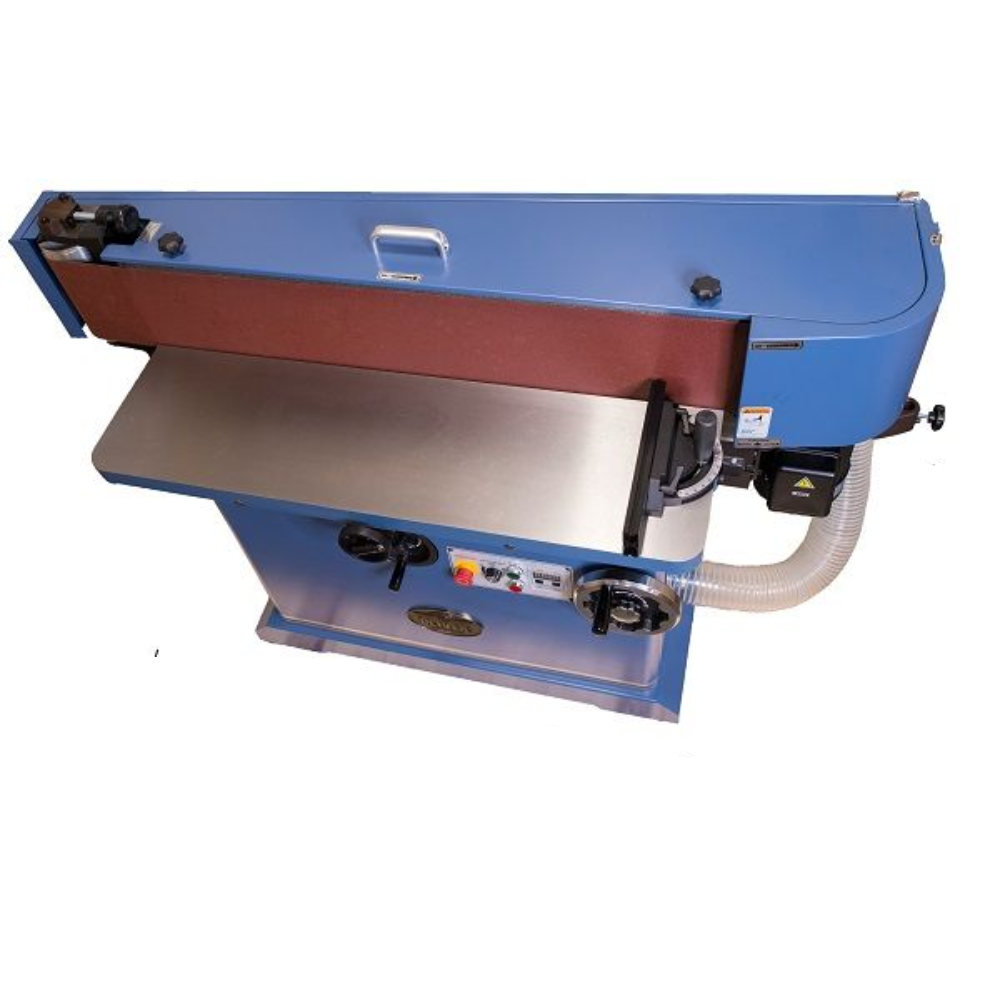

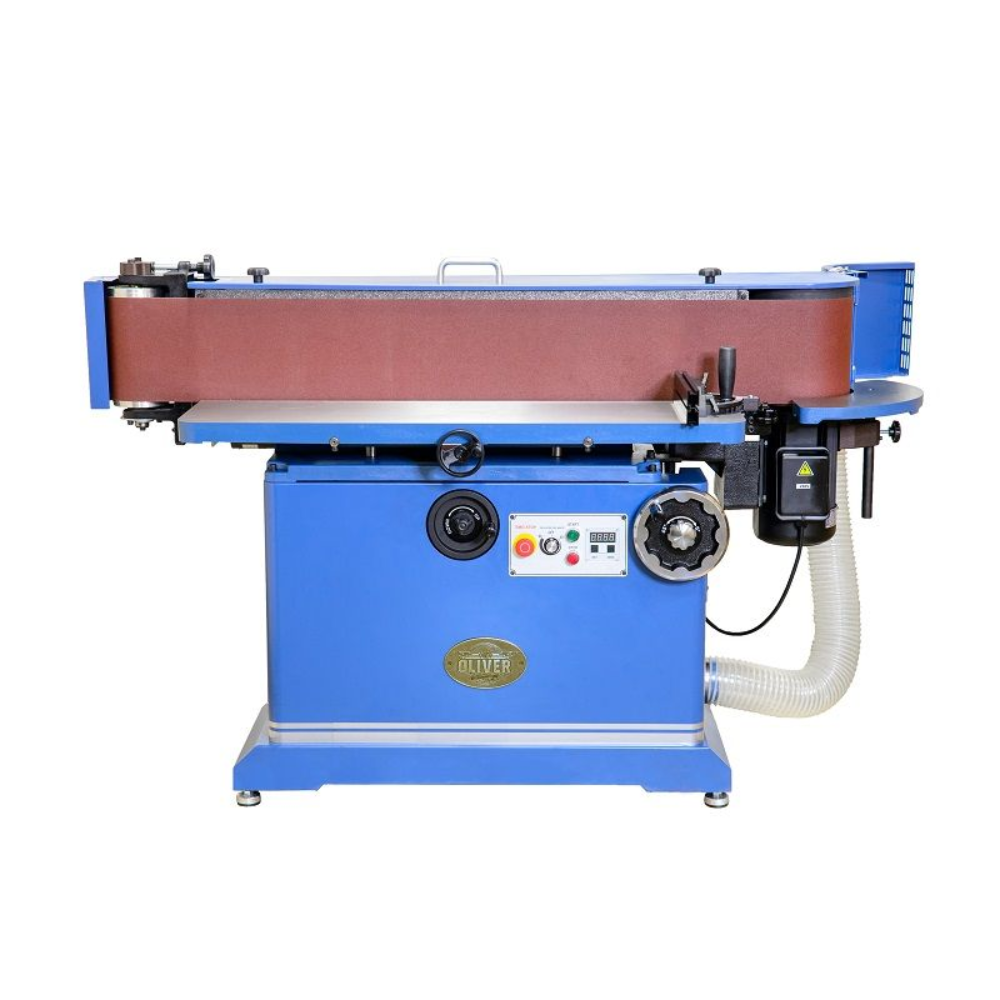

The Oliver Machinery 9" x 138" Oscillating Edge Sander (Model 6320.001) is a powerful sanding solution with a 3HP motor and a wide 9" x 138" abrasive belt. Its adjustable oscillation provides superior sanding performance for larger workpieces. Featuring precision-ground cast iron tables and smooth-operating balanced drums, this sander ensures a professional finish. The built-in 4" dust port and magnetic controls offer added convenience and safety.

Product Specifications

Model Number 6320.001
Sanding Belt Size 9 inches x 138 inches
Motor Power 3 horsepower, single-phase, 230V
Motor Type Totally Enclosed Fan Cooled (TEFC)
Table Material Precision-ground cast iron
Table Dimensions 9 inches x 138 inches
Oscillation Adjustable oscillation for consistent finish
Table Adjustment Vertically adjustable for full belt utilization
Dust Collection Port 4 inches diameter for efficient dust extraction
Drum Type Precision-balanced drums for smooth sanding
Dimensions (L x W x H) 58 inches x 28 inches x 48 inches
Weight 750 pounds
Safety Features Magnetic motor controls for enhanced protection
End Table Contoured sanding end table for versatility
Power Requirements 230V single-phase or three-phase configurations available
