Oliver Machinery 6" x 89" Edge Sander 1.5HP 1Ph - 6305.001

✔ Trusted, Authorized Oliver Machinery Dealer

✔ Price Match Guarantee!
✔ Free Shipping for a limited time
✔ No Sales tax except MI
✔ Warranty: 2 year manufacturers warranty
✔ Chat or Call 888-482-2668 anytime!

Ship timing typically 3-5 business days. Additional cost for residential and lift gate service.

👉 Act Quickly & Revitalize Your Workshop! 🔥

$1,594.99
Voltage

Notify me when back in stock

Key Features

  • Tilting Platen: Adjusts from 90° to 180°, allowing the belt to operate in horizontal or vertical positions, accommodating various sanding applications

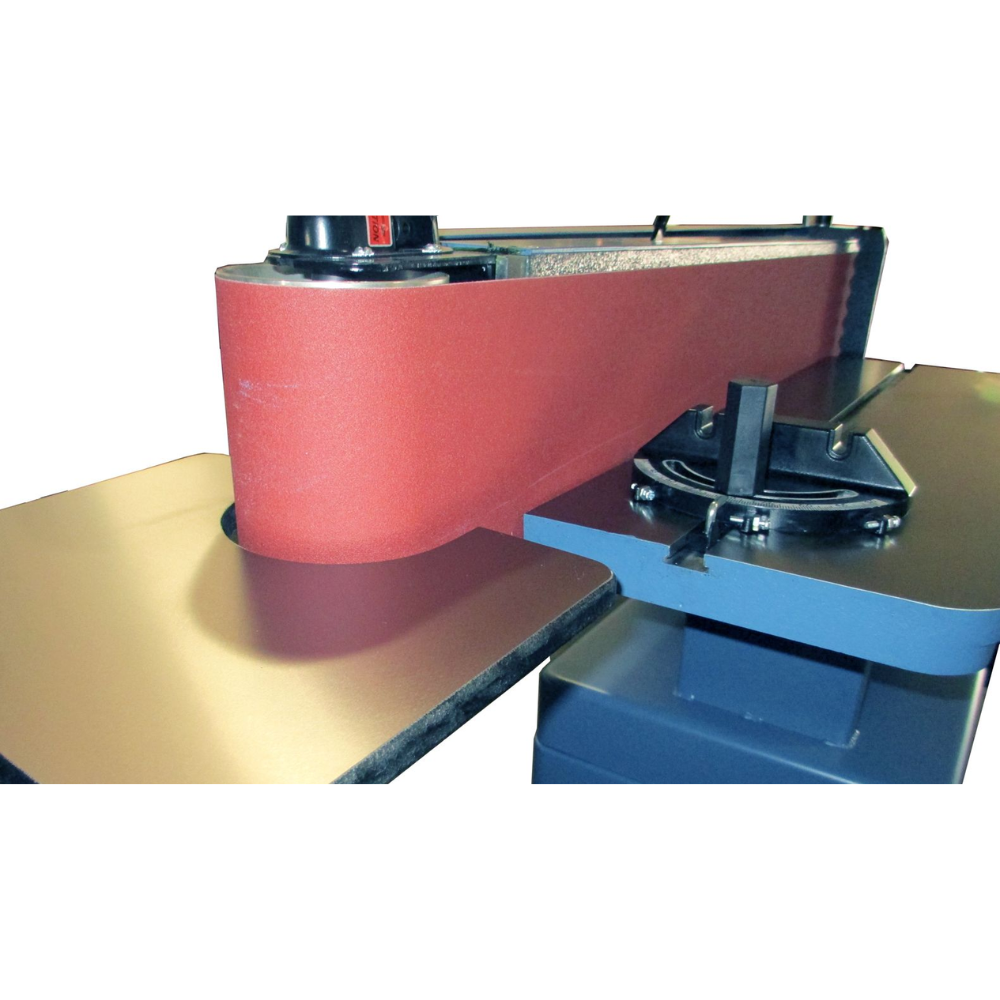

  • Large Sanding Belt: Equipped with a 6" x 89" belt, providing ample surface area for efficient material removal

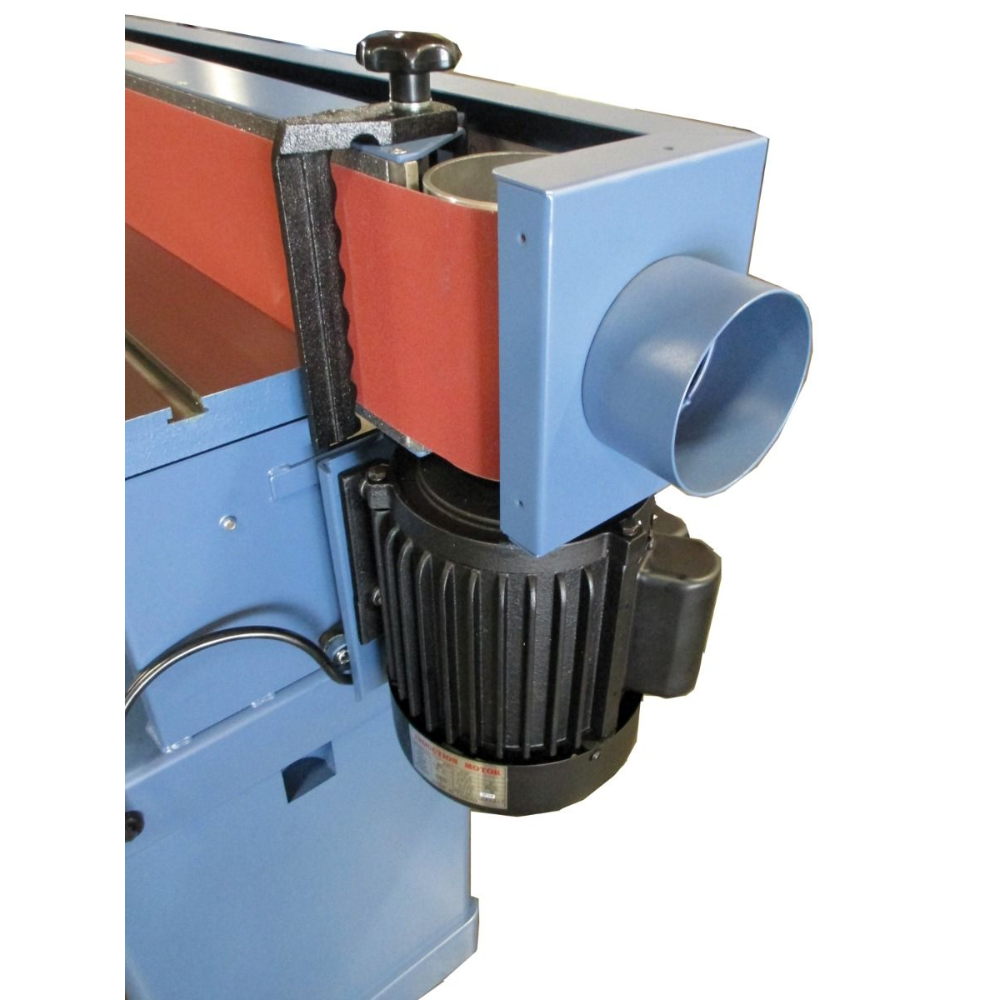

  • Powerful Motor: Features a 1.5HP TEFC single-phase motor, delivering consistent power for demanding sanding tasks

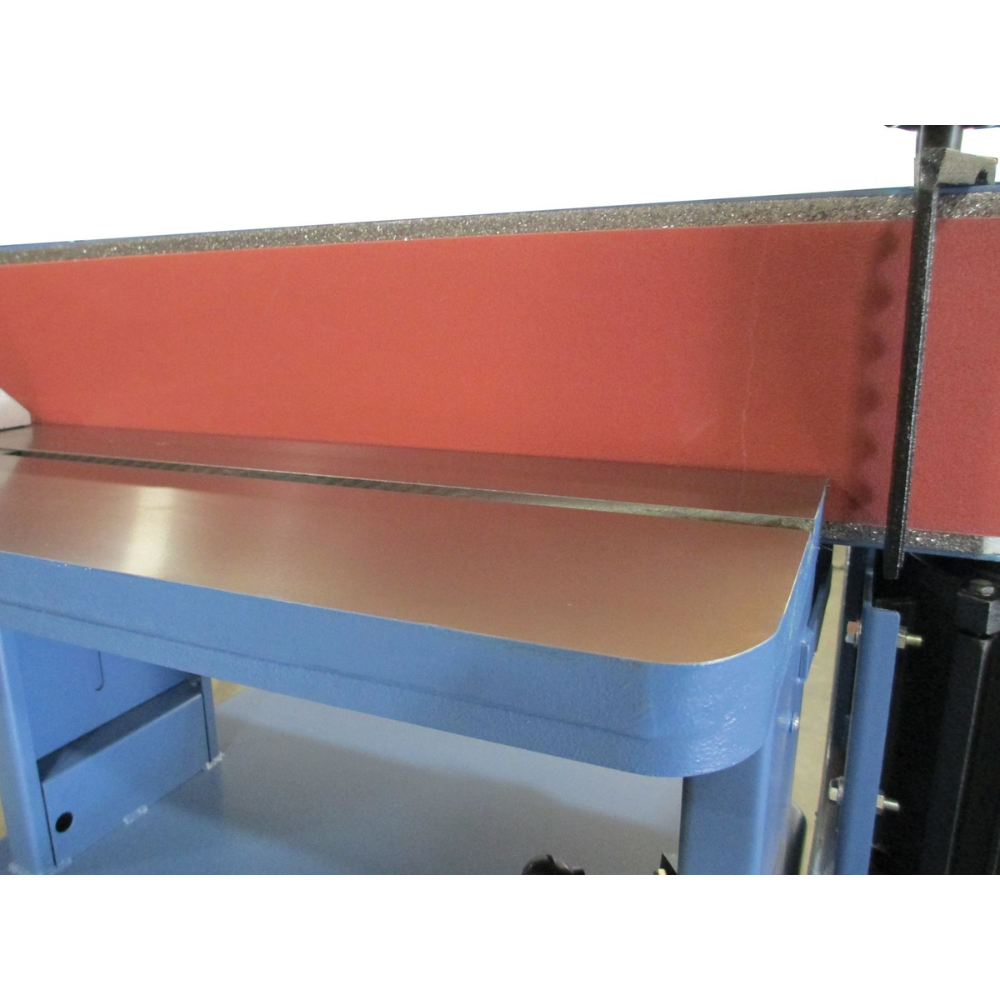

  • Adjustable Cast Iron Table: Vertically adjustable to fully utilize the sanding belt's surface, enhancing flexibility
  • Graphite-Covered Steel Platen: Reduces friction and heat buildup, prolonging the life of both the platen and sanding belts

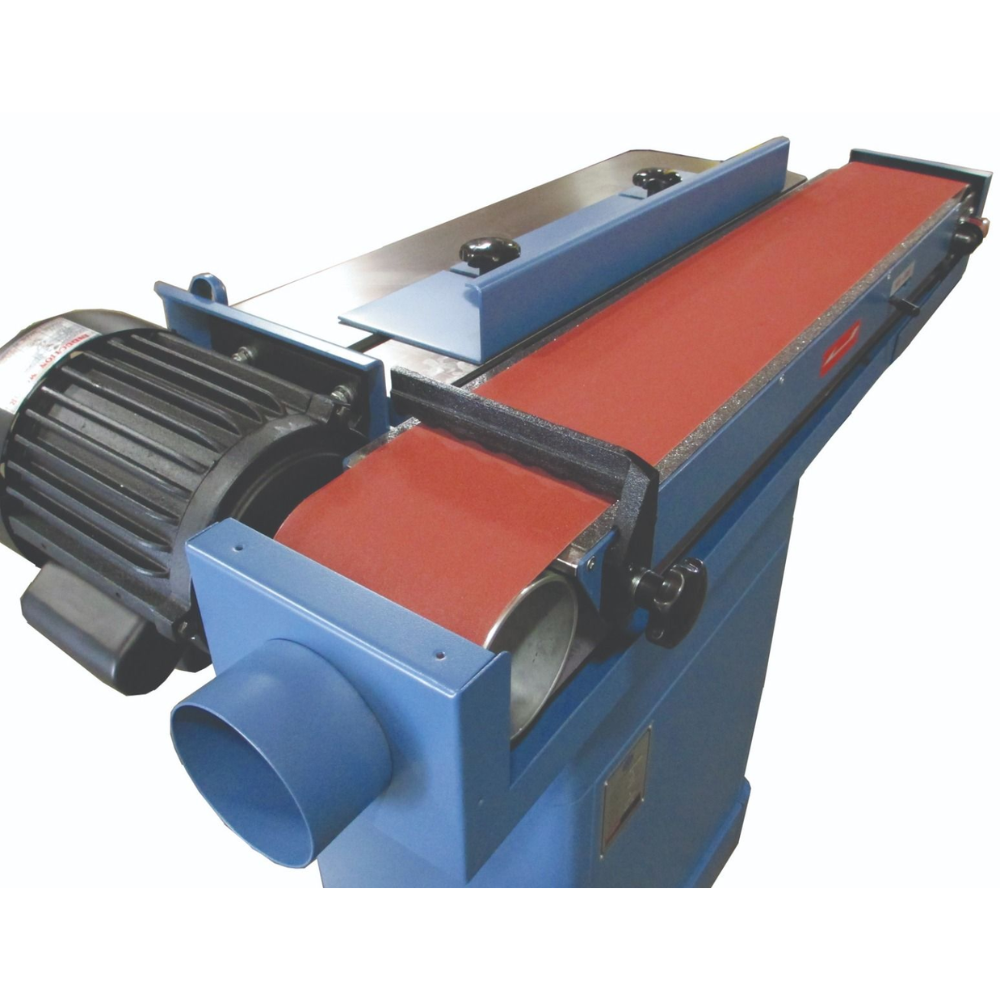

  • Efficient Dust Management: Includes a built-in 4" dust port to connect to dust collection systems, maintaining a clean work environment
  • User-Friendly Controls: Industrial push-button controls are strategically located for ease of use during operation
  • Full Cabinet Design: Provides a stable workstation with additional storage space for tools and accessories

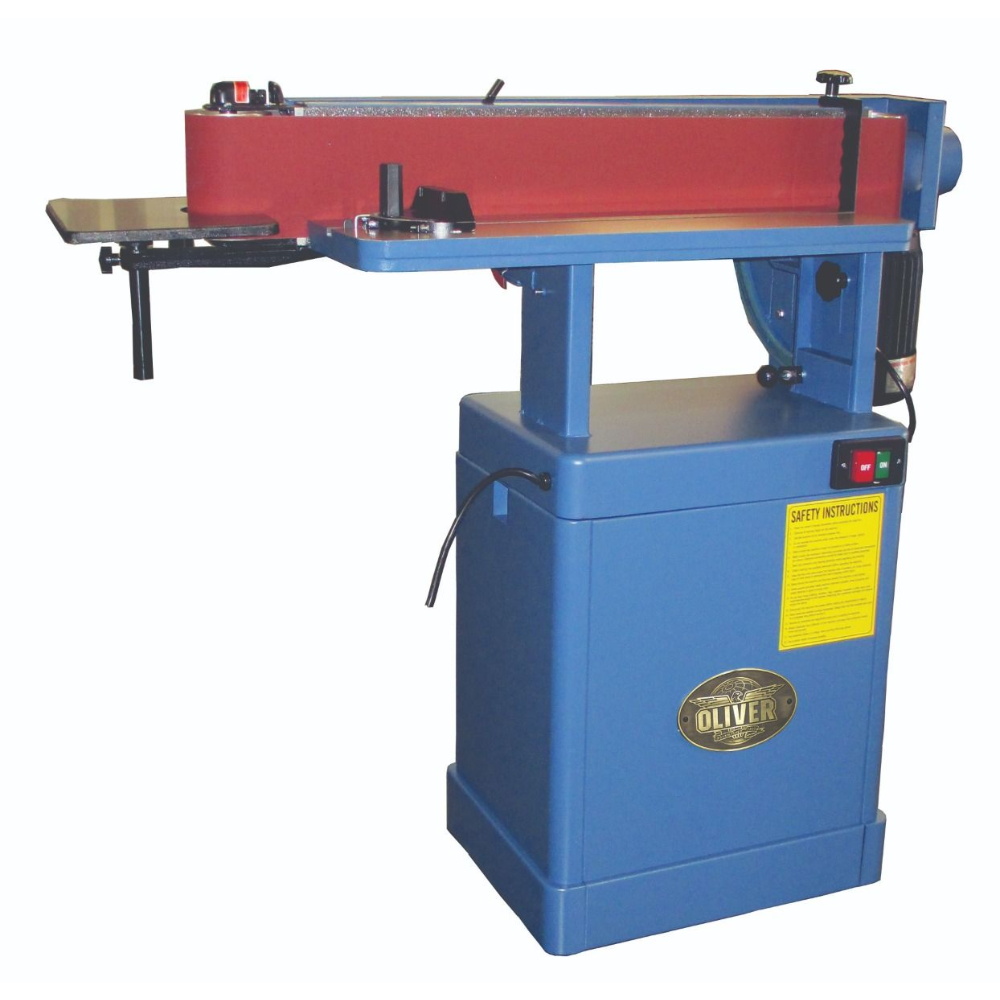

The Oliver Machinery 6" x 89" Edge Sander 1.5HP 1Ph - 6305.001 is a versatile sanding solution, featuring a tilting cast iron table adjustable from 90° to 180°, accommodating horizontal and vertical belt positions. It boasts a powerful 1.5HP TEFC single-phase motor, efficient dust management via a built-in 4" dust port, and user-friendly industrial push-button controls.

Product Specifications

Model Number 6305
Stock Number 6305.001
Table Length 27 inches
Table Width 10 inches
Table Material Precision-ground cast iron
Belt Size 6 inches x 89 inches
Belt Speed 3,900 feet per minute
Front Table Size 27 inches x 9.8 inches
Table Tilt 90° to 180°
Table Height Adjustment 37.5 inches to 40.5 inches
Dust Port Diameter 4 inches
Motor 1.5 horsepower, single-phase, 115/220V (prewired for 115V, 18/9 Amp)
Overall Dimensions (L x W x H) 48 inches x 21 inches x 48 inches
Net Weight 247 pounds
Gross Weight 280 pounds
