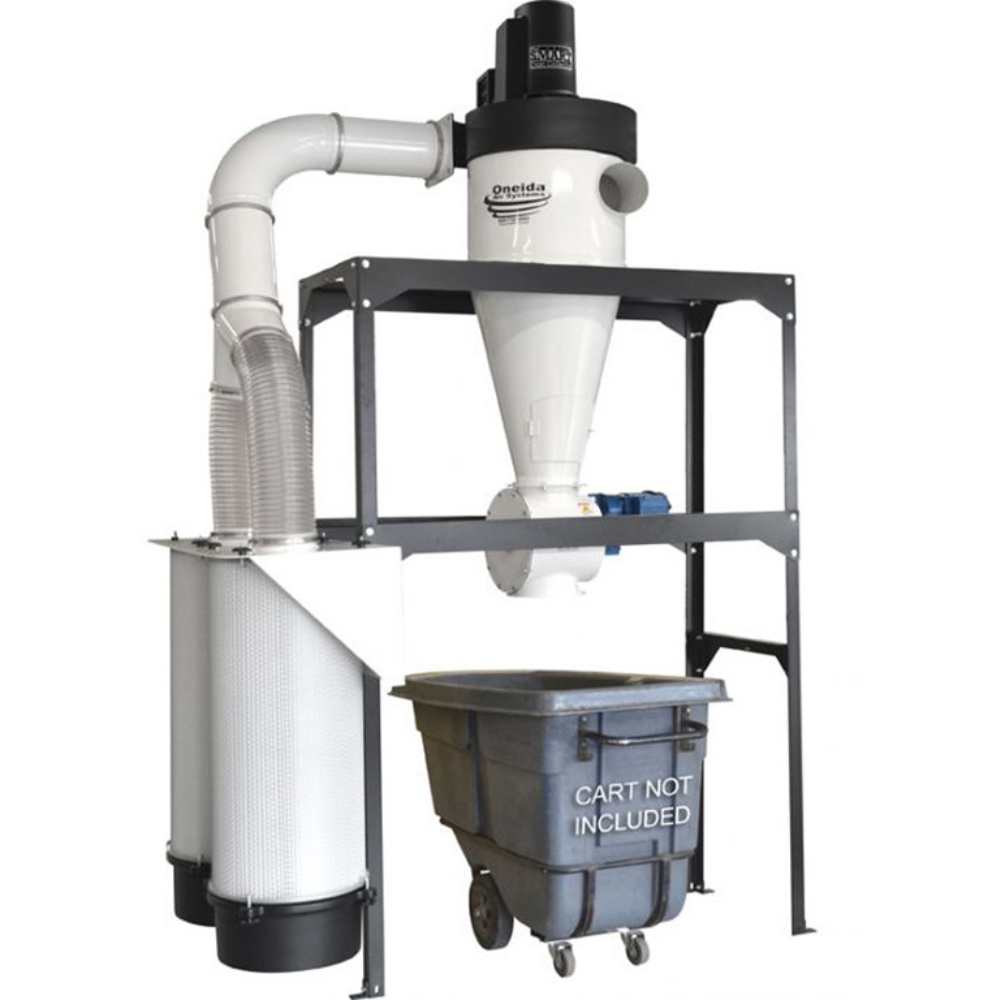

Oneida Air Systems 5hp 460V High Vacuum SMART Boost Freestanding Cyclone Dust Collector w/ Air Lock - XXS050348

Oneida Air Systems 5hp 460V High Vacuum SMART Boost Freestanding Cyclone Dust Collector w/ Air Lock - XXS050348

by Oneida Air Systems

✔ Trusted, Authorized Oneida Air Systems Dealer

✔ Price Match Guarantee!
✔ Free Shipping for a limited time
✔ No Sales tax except MI
✔ Warranty: 2 year manufacturers warranty
✔ Chat or Call 888-482-2668 anytime!

Please email for lead times. Additional cost for residential and lift gate service.

👉 Buy Today & Transform Your Workshop! 🔥

$11,290.00

Notify me when back in stock

Key Features

  • Industrial 5HP U.S. Made Fan Blower Motor
  • SMART Boost Variable Speed Airflow Controller
  • High-Efficiency 460V / 3-Phase Power (230V 3-phase model also available)
  • Wireless Radio Frequency Remote Control Keyfob
  • Heavy-Gauge Seam Welded Steel Cyclone Separator
  • (2) Internal Silencers
  • Magnetic Starter
  • Filter Plenum Assembly

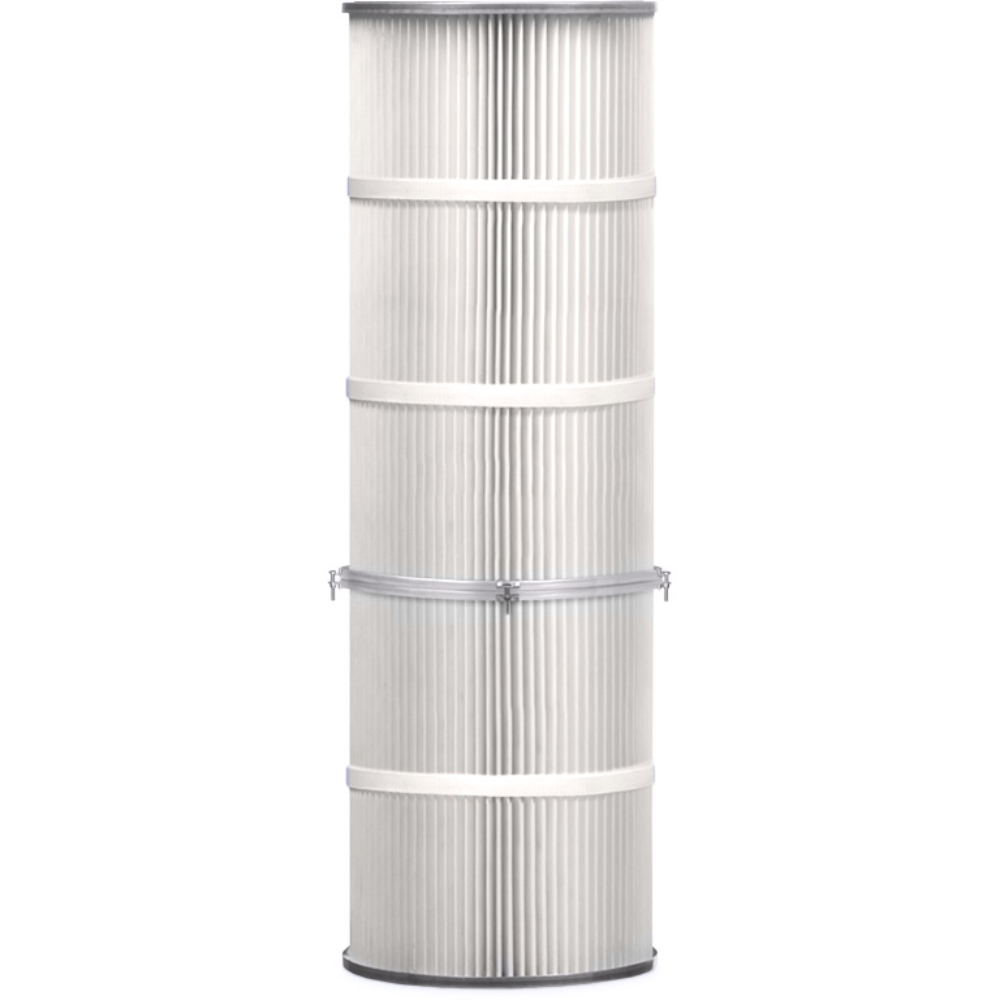

  • (2) Spunbond Cartridge Filters
  • Heavy-Duty Angle Iron Frame Stand

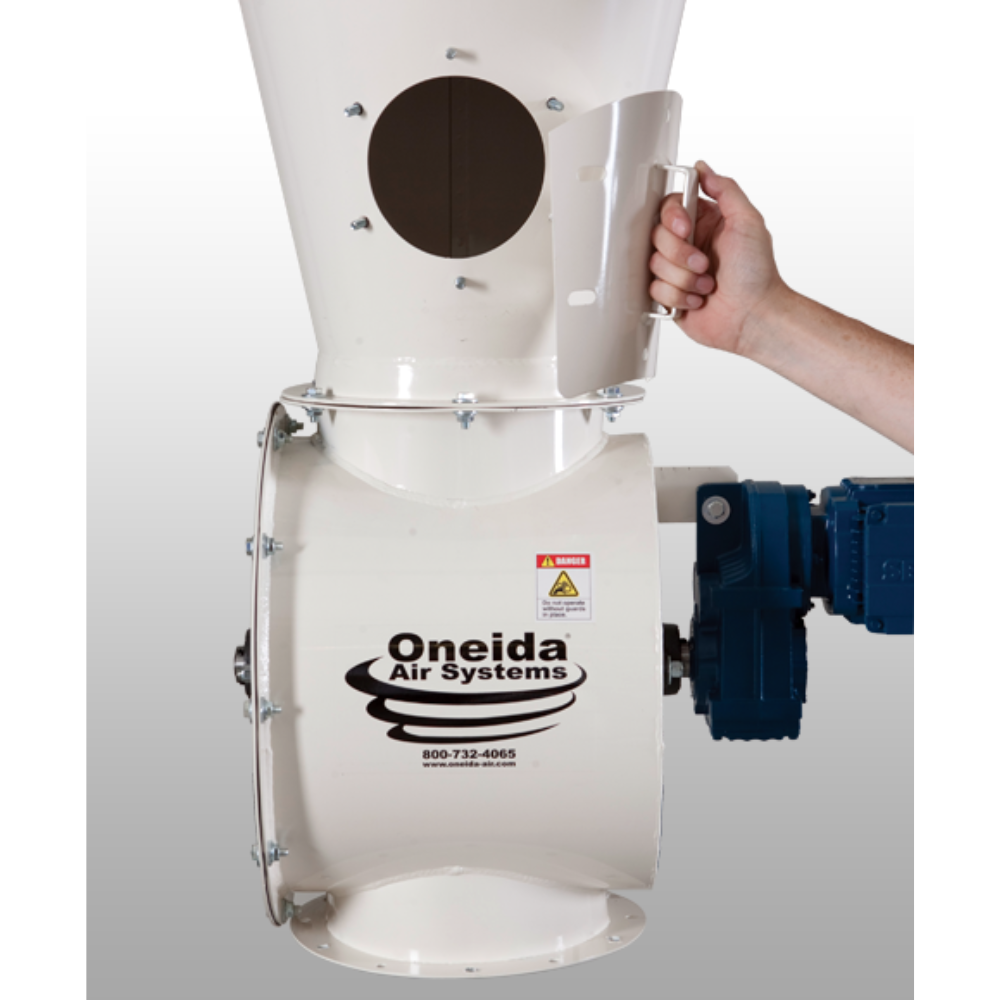

  • Industrial Rotary Air Lock

The Oneida Air Systems 5HP 460V High Vacuum SMART Boost Freestanding Cyclone Dust Collector w/ Air Lock (Model XXS050348) delivers exceptional performance by providing up to double the airflow and suction of traditional dust collectors, thanks to its SMART Boost technology. Designed for CNC machining, sanding, and fine dust applications, it features a powerful 5HP U.S.-made motor, a heavy-gauge steel cyclone separator, and MERV 13 filters for maximum efficiency. The rotary air lock valve ensures continuous dust removal with minimal maintenance. Ideal for demanding shops, this system enhances cut quality, extends tool life, and offers high static air pressure and variable speed dust collection for optimal results

Description

The Oneida Air Systems 5HP 460V High Vacuum SMART Boost Freestanding Cyclone Dust Collector w/ Air Lock (Model XXS050348) delivers exceptional performance by providing up to double the airflow and suction of traditional dust collectors, thanks to its SMART Boost technology. Designed for CNC machining, sanding, and fine dust applications, it features a powerful 5HP U.S.-made motor, a heavy-gauge steel cyclone separator, and MERV 13 filters for maximum efficiency. The rotary air lock valve ensures continuous dust removal with minimal maintenance. Ideal for demanding shops, this system enhances cut quality, extends tool life, and offers high static air pressure and variable speed dust collection for optimal results

Shipping

Your order will be shipped directly from the manufacturer to your address.  We currently ONLY ship in the contiguous United States.

FREE SHIPPING for a limited time!  Lift gate is available at an additional charge.

Find more details in our Shipping Policy.

Why Buy From Us

At Woodworking Source Direct we have interacted with enough woodworkers to know that creating your project is a gift and a passion!  Driven by our customers' enthusiasm we're committed to creating the best online experience.

We know that you've got a lot of choices but here's why we think you should shop with us at Woodworking Source Direct:

  • Family owned and operated
  • Price Match Guarantee. Best prices online guaranteed.
  • 30 Day Easy Returns.
  • Great Service. We pride ourselves on the best service, anywhere.
  • Your Satisfaction Guaranteed. We handpick our products for quality, we know you'll love them. But if there is ever something wrong, we'll fix it.

Product Specifications

Model Number XXS050348
Horsepower 5 HP
Motor Type U.S. TEFC Motor
Motor Service Factor 1.15
Voltage 460V
Recommended Breaker 30A
Running Amps 10A
Motor Phase Three-Phase (Pre-Wired)
Frequency 60Hz
Power Connection 4 Bare Wires (3 Hot + Ground)
Impeller Type Single-piece, backward inclined, non-sparking
Impeller Diameter 15"
Actual Airflow 1,976 CFM @ 3.6" WC
Max Suction 23" WC
Noise Level 86–88 dBA @ 10 ft
Motor Speed Control Variable
Separation Efficiency Removes over 99% of fine dust
Filter Type Izumi Axtar Spunbond Media
Filtration Efficiency 99.9% @ 0.3–2.0 microns
Filter Surface Area 220 sq ft
Waste Handling Capacity Up to 36 gallons/min
Remote Control Included
Body Material Cold Rolled Steel
Welding Type Seam Welded
Static Rating Conductive (Metal)
Color White
Inlet Diameter 7"
Outlet Size 7-3/8"W x 6-3/8"H (square ID)
Discharge Port 10" ID Flange
Inlet Height 103"
Net Weight 793 lbs
Included Items Motor, VFD, Starter, Remote, Fan Housing, Cyclone, Plenum, 2 Filters, 2 Silencers, Stand, Air Lock, Hardware
Manufacturer Oneida Air Systems
Country of Origin Made in USA
Certifications cETLus Certified for Indoor Use
