Oneida Air Systems 5hp 460V High Vacuum SMART Boost 55 Gal. Freestanding Cyclone Dust Collector - XXS050341

✔ Trusted, Authorized Oneida Air Systems Dealer
✔ Best Price Guarantee
✔ Warranty: 2 year manufacturers warranty
✔ Call or Text 888-482-2668 anytime!

👉 Buy Today & Transform Your Workshop! 🔥

$7,495.00

No guesswork: $399 Standard Flat Rate Shipping
No Sales Tax except MI

Notify me when back in stock

Key Features

  • SMART Boost Technology: Automatically adjusts motor speed to maintain optimal airflow, doubling suction through restrictive ports and long duct runs
  • 5HP U.S.-Made TEFC Motor: Industrial-grade motor delivers consistent performance and reliability for demanding applications
  • High-Efficiency Cyclone Separator: Heavy-gauge steel construction with a single-piece, backward-inclined, non-sparking impeller ensures efficient dust separation
  • Modular Cartridge Filters: Dual FlameGuard® filters with 220 sq. ft. total filtration area and 99.9% efficiency at 0.2–2.0 microns
  • 55-Gallon Reinforced Steel Dust Bin: Durable bin with automatic fill-level indicator for easy maintenance
  • Wireless RF Remote Control: Convenient keyfob for remote operation, enhancing user experience
  • Heavy-Duty Angle Iron Frame Stand: Provides robust support and stability for the entire system
  • Noise Reduction Features: Includes internal foam silencers and acoustic filter design to minimize operational noise
  • cETLus Certified: Meets stringent safety standards for indoor use

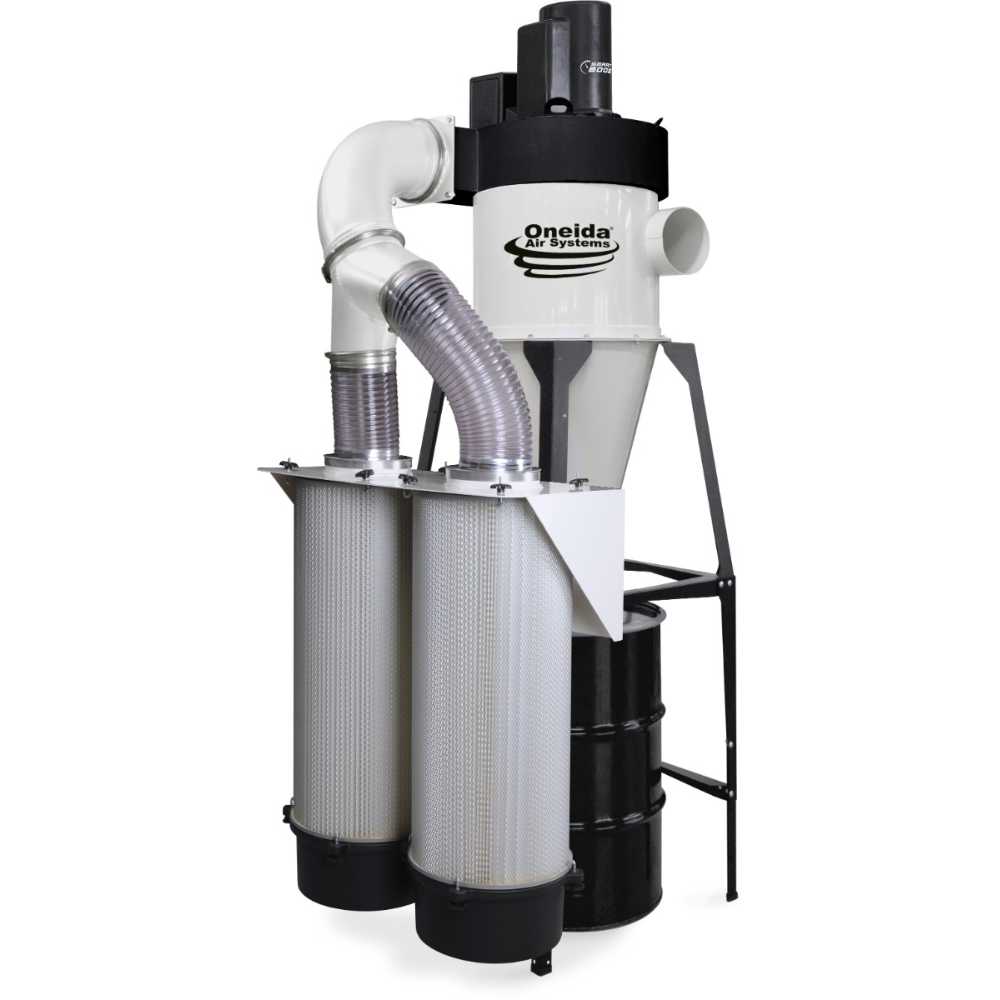

The Oneida Air Systems 5hp 460V High Vacuum SMART Boost Cyclone Dust Collector (XXS050341) delivers unmatched suction power for CNC and industrial woodworking applications. Featuring patented SMART Boost variable speed technology, this system doubles airflow performance through small tool ports while maintaining maximum static pressure and suction. With a U.S.-made motor, 55-gallon steel dust bin, and high-efficiency cartridge filtration, it's the ultimate solution for fine dust extraction, cleaner cuts, and increased tool life.

Description

The Oneida Air Systems 5hp 460V High Vacuum SMART Boost Cyclone Dust Collector (XXS050341) delivers unmatched suction power for CNC and industrial woodworking applications. Featuring patented SMART Boost variable speed technology, this system doubles airflow performance through small tool ports while maintaining maximum static pressure and suction. With a U.S.-made motor, 55-gallon steel dust bin, and high-efficiency cartridge filtration, it's the ultimate solution for fine dust extraction, cleaner cuts, and increased tool life.

Shipping

Your order will be shipped directly from the manufacturer to your address.  We currently ONLY ship in the contiguous United States.

Flat rate shipping will be automatically added at checkout.

Find more details in our Shipping Policy.

Why Buy From Us

At Woodworking Source Direct we have interacted with enough woodworkers to know that creating your project is a gift and a passion!  Driven by our customers' enthusiasm we're committed to creating the best online experience.

We know that you've got a lot of choices but here's why we think you should shop with us at Woodworking Source Direct:

  • Family owned and operated
  • Price Match Guarantee. Best prices online guaranteed.
  • 30 Day Easy Returns.
  • Great Service. We pride ourselves on the best service, anywhere.
  • Your Satisfaction Guaranteed. We handpick our products for quality, we know you'll love them. But if there is ever something wrong, we'll fix it.

Product Specifications

Model Number XXS050341
Motor Power 5 hp
Motor Type U.S. TEFC Enclosure
Service Factor 1.15
Operating Voltage 460V
Phase Configuration Three-Phase (Pre-Wired)
Frequency 60Hz
Running Amperage 10A
Motor FLA 10
Recommended Breaker 30A
Power Connection 4 Bare Wires (Three Hot & Ground)
Speed Control Variable
Impeller Design Single-piece, backward inclined, non-ferrous
Impeller Diameter 15 inches
Verified Airflow 1,976 CFM at 3.6" WC
Max Static Pressure 23" WC
Sound Output 86–88 dBA at 10 ft
Dust Separation Efficiency Over 99% of fine wood dusts removed
Filter Media Izumi Axtar Spunbond
Micron Filtration Efficiency 99.9% @ 0.3–2.0 microns (seasoned filter)
Filter Surface Area 220 sq ft
Drum Capacity 55 Gallons
Remote Access Yes, included
Material Construction Cold Rolled Steel
Welding Type Seam Welded
Static Conductivity Conductive Metal Build
Finish Color White
Inlet Diameter 7 inches
Outlet Dimensions 7-3/8" W x 6-3/8" H (Square)
Discharge Diameter 9 inches
Brand Oneida Air Systems
Country of Origin Made in USA
Included Components Motor, Driver, Starter, Remote, Housing, Separator, Filters, Silencers, Frame, Drum, Sensor, Hardware
Inlet Height from Base 79 inches
Unit Weight 494 lbs
