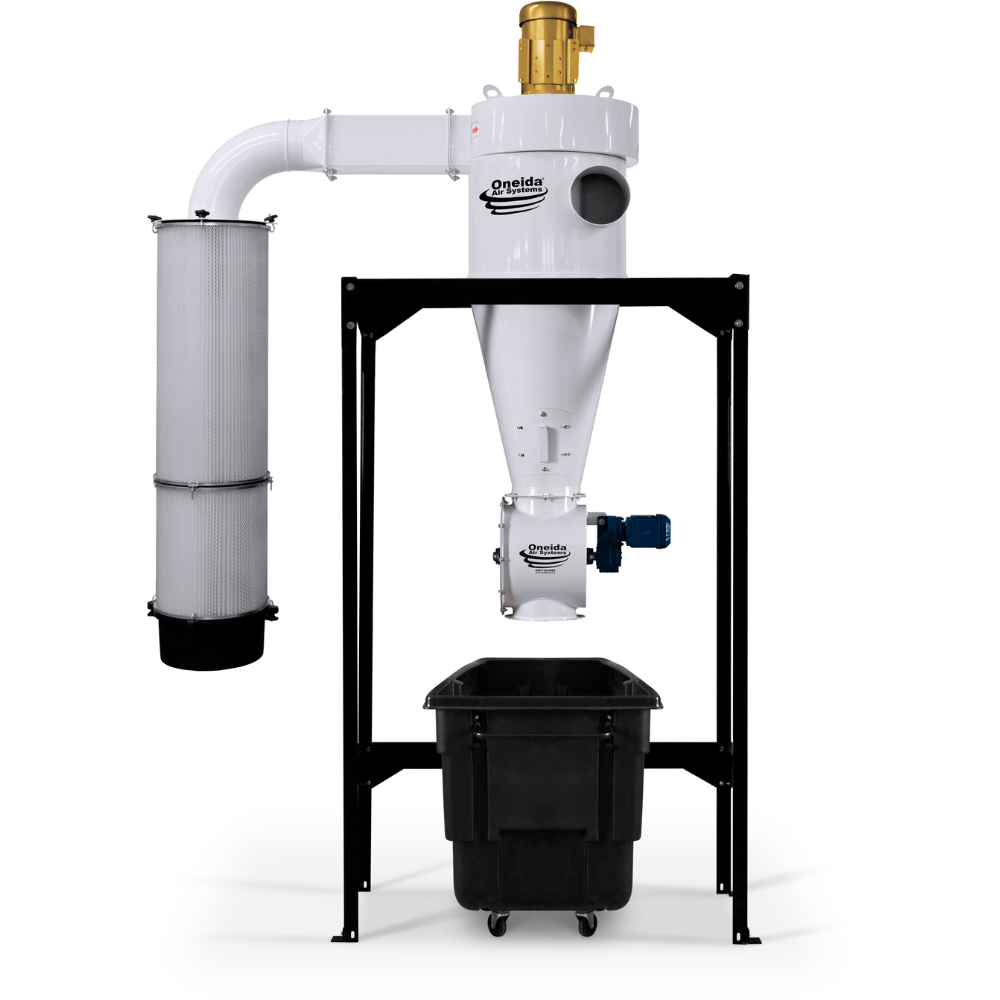

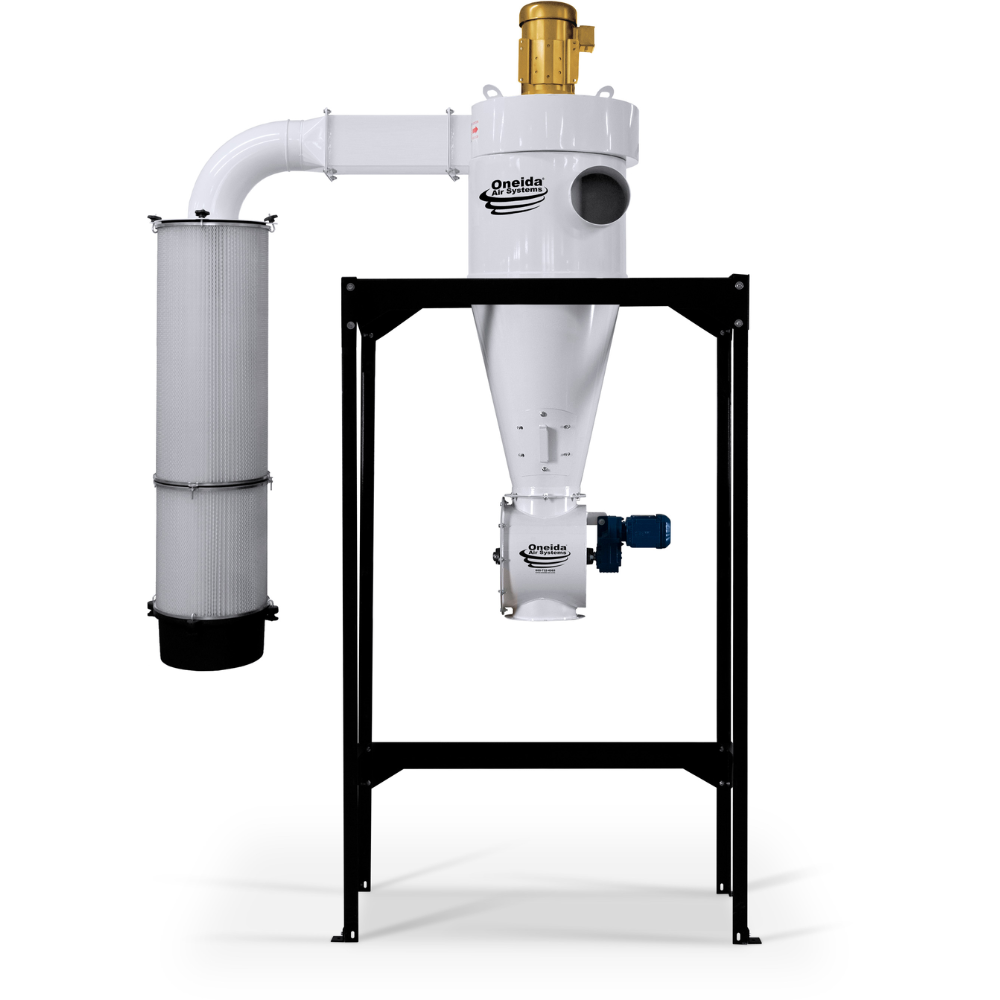

The Oneida Air Systems 5HP 460V High Vacuum Freestanding Cyclone Dust Collector (Model XXK050346-AIR) is a high-performance dust extraction system designed for industrial applications requiring high static pressure, such as CNC machines, sanders, and planers.This system features a U.S.-made 5HP motor, heavy-gauge welded steel cyclone separator, and modular MERV-13 cartridge filters with an efficiency gauge for real-time monitoring.Its rotary air lock valve ensures continuous waste removal into a customer-supplied container, minimizing downtime and maintaining optimal suction power.
Description
Shipping
Why Buy From Us
Description
The Oneida Air Systems 5HP 460V High Vacuum Freestanding Cyclone Dust Collector (Model XXK050346-AIR) is a high-performance dust extraction system designed for industrial applications requiring high static pressure, such as CNC machines, sanders, and planers.This system features a U.S.-made 5HP motor, heavy-gauge welded steel cyclone separator, and modular MERV-13 cartridge filters with an efficiency gauge for real-time monitoring.Its rotary air lock valve ensures continuous waste removal into a customer-supplied container, minimizing downtime and maintaining optimal suction power.
Shipping
Your order will be shipped directly from the manufacturer to your address. We currently ONLY ship in the contiguous United States.
Flat rate shipping will be automatically added at checkout.
Find more details in our Shipping Policy.
Why Buy From Us
At Woodworking Source Direct we have interacted with enough woodworkers to know that creating your project is a gift and a passion! Driven by our customers' enthusiasm we're committed to creating the best online experience.
We know that you've got a lot of choices but here's why we think you should shop with us at Woodworking Source Direct:
Family owned and operated
Price Match Guarantee. Best prices online guaranteed.
30 Day Easy Returns.
Great Service. We pride ourselves on the best service, anywhere.
Your Satisfaction Guaranteed. We handpick our products for quality, we know you'll love them. But if there is ever something wrong, we'll fix it.
Product Specifications
Model Number
XXK050346-AIR
Horsepower
5 HP
Motor Type
U.S. TEFC Motor
Motor Service Factor
1.15
Voltage
460V
Motor Phase
Three-Phase (Pre-Wired)
Frequency
60Hz
Running Amps
5.8A
Recommended Breaker
30A
Power Connection
4 Bare Wires (3 Hot + Ground)
Power Cord Length
10 ft
Motor Speed
Fixed
Impeller Type
Backward inclined, cast aluminum, non-sparking
Impeller Diameter
16-1/2"
Actual Airflow
2,150 CFM @ 2" S.P.
Max Airflow (Free Fan)
3,225 CFM
Max Suction
16" WC
Noise Level
75–81 dBA @ 10 ft
Separation Efficiency
Removes over 99% of fine wood dust
Filter Type
Izumi Axtar Spunbond Media
Filtration Efficiency
99.9% @ 0.3–2.0 microns
Filter Surface Area
155 sq ft
Waste Handling Capacity
Up to 36 gallons/min
Remote Control
Call for Info
Material Build
Cold Rolled Steel
Welding Type
Seam Welded
Static Rating
Conductive (Metal)
Color
White
Inlet Diameter
8"
Outlet Size
10-1/32"W x 7-41/64"H (square ID), 1-1/4" Flange
Discharge Port
10" Flange (10-1/4" ID, 13" OD, 11-3/4" BCD)
Manufacturer
Oneida Air Systems
Country of Origin
Made in USA
Included Components
Motor, Starter, Fan Housing, Cyclone, Filter Plenum, 2 Filters, Silencer, Gauge, Stand, Air Lock, Hardware
